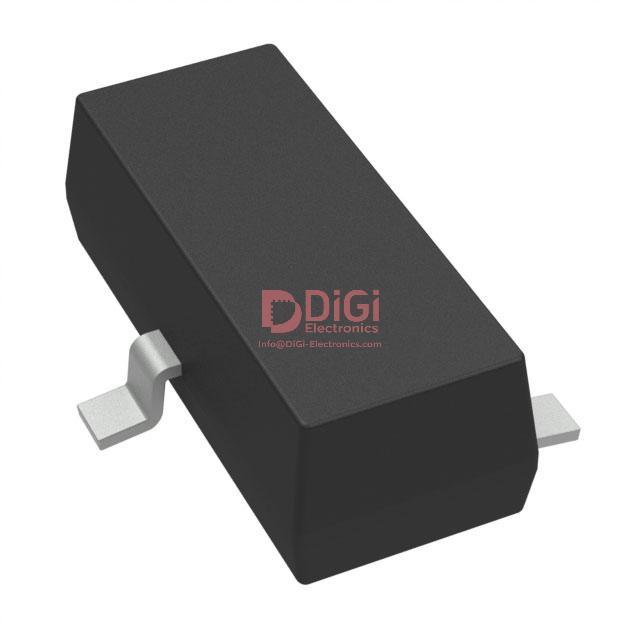

TLV431BQDBZRQ1 The Texas Instruments TLV431BQDBZRQ1 is an adjustable shunt voltage reference IC. It offers an output voltage range of 1.24V to 6V with a tolerance of ±0.5%.
Mfr Part #:

TLV431BQDBZRQ1

Available from 5 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLV431BQDBZRQ1 is an adjustable shunt voltage reference IC. It offers an output voltage range of 1.24V to 6V with a tolerance of ±0.5%.
✓ Total Stock: 331,404 pcs
$ Price Range: $1.14

TLV431BQDBZRQ1 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV431BQDBZRQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Mounting Type
Output Type
Reference Type
SVHC Present
Tolerance
View Similar Products (0)

TLV431BQDBZRQ1 Description

Short technical summary and product information.

The TLV431BQDBZRQ1 from Texas Instruments is a versatile shunt voltage reference IC designed for various power management applications. It provides an adjustable output voltage, ranging from a minimum of 1.24V up to a maximum of 6V, with a precise tolerance of ±0.5%. This device can deliver an output current of 15mA and operates with a low cathode current of 100µA.



The TLV431BQDBZRQ1 is supplied in a compact SOT-23-3 surface-mount package, making it suitable for designs where space is a constraint. Its adjustable nature allows for flexibility in setting precise voltage levels required for different circuit designs.



This component is part of the broader category of Current Regulation Management within Power Management ICs. Its specifications make it a reliable choice for applications requiring stable voltage references.

TLV431BQDBZRQ1 Quick Information

Product Type: Shunt Voltage Reference IC
Series: TLV431B
Canonical Name: Texas Instruments TLV431BQDBZRQ1 Shunt Voltage Reference IC
Subcategory: Shunt

TLV431BQDBZRQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV431BQDBZRQ1 Estimated Pricing

Qty Low High
1+ $1.14 $1.14

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV431BQDBZRQ1 Features

  • Adjustable shunt voltage reference IC.
  • Output voltage from 1.24V to 6V.
  • Tight tolerance of ±0.5%.
  • 15mA maximum output current.
  • Compact SOT-23-3 package.

TLV431BQDBZRQ1 Applications

  • Used for adjustable voltage regulation.
  • Suitable for power supply circuits.
  • Ideal for battery management systems.
  • Applicable in general voltage reference needs.

TLV431BQDBZRQ1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the TLV431BQDBZRQ1?

The output voltage is adjustable from 1.24V to 6V.

What package is the TLV431BQDBZRQ1 available in?

It is available in a SOT-23-3 surface-mount package.

What is the tolerance of the TLV431BQDBZRQ1?

The tolerance is ±0.5%.

What is the output current of the TLV431BQDBZRQ1?

The output current is 15mA.

What is the cathode current of the TLV431BQDBZRQ1?

The cathode current is 100µA.

What is the reference type of the TLV431BQDBZRQ1?

It is a shunt voltage reference.

Is the output of the TLV431BQDBZRQ1 adjustable?

Yes, the output is adjustable.
