TLV431BE5TA The Diodes Incorporated TLV431BE5TA is an adjustable shunt voltage reference. It offers a precise 1.24V reference voltage with an initial accuracy of ±0.5%.
Mfr Part #:

TLV431BE5TA

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated TLV431BE5TA is an adjustable shunt voltage reference. It offers a precise 1.24V reference voltage with an initial accuracy of ±0.5%.
✓ Total Stock: 10,000 pcs

TLV431BE5TA Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,000 pcs
On Request
7000 pcs On Request 1 On Request On Request 12+PBF On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 1352+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV431BE5TA Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Failure Rate
Height
Lead Style
Length
Maximum Input Voltage
Mounting Type
Output Current
Output Type
Reference Type
SVHC Present
Storage Temperature
Tape & Reel
Topology
View Similar Products (0)

TLV431BE5TA Description

Short technical summary and product information.

The Diodes Incorporated TLV431BE5TA is an adjustable shunt voltage reference IC designed for various power management applications. It provides a stable reference voltage of 1.24V with a tight initial accuracy of ±0.5%, ensuring reliable performance.



This device features an adjustable output type and a shunt topology, allowing for flexible integration into circuit designs. It can handle an output current of up to 20mA and operates within a wide input voltage range from 1.22V to 20V. The TLV431BE5TA is suitable for applications requiring precise voltage regulation.

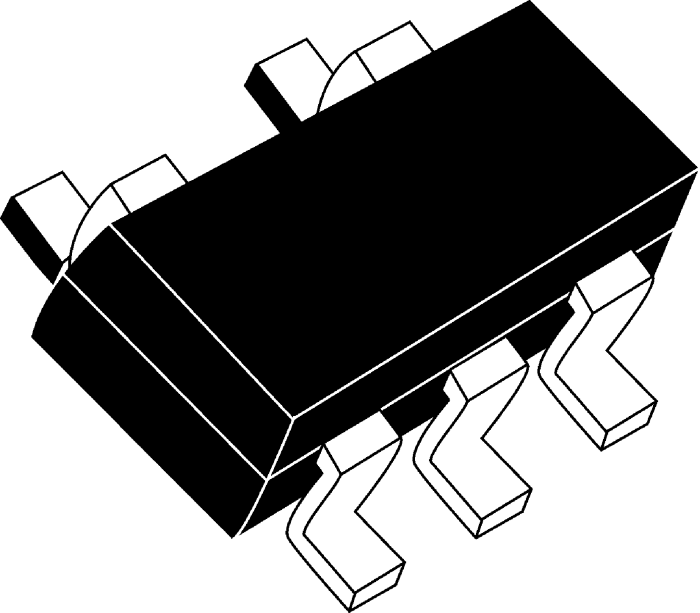

Packaged in a compact 5-pin SOT-25 surface-mount package, this component is designed for efficient board space utilization. It operates across a temperature range of -40°C to 125°C, making it suitable for demanding environmental conditions. The TLV431BE5TA is manufactured in China.

TLV431BE5TA Quick Information

Product Type: Adjustable Shunt Voltage Reference
Series: TLV431
Canonical Name: Diodes Incorporated TLV431BE5TA Adjustable Shunt Voltage Reference
Subcategory: Adjustable Shunt Voltage Reference

TLV431BE5TA Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV431BE5TA Features

  • Adjustable shunt voltage reference IC
  • Precise 1.24V reference voltage
  • Tight ±0.5% initial accuracy
  • 20mA maximum output current
  • Compact SOT-25 package

TLV431BE5TA Applications

  • Ideal for voltage regulation circuits
  • Suitable for power supply designs
  • Used in battery management systems
  • Applicable in adjustable power sources

TLV431BE5TA FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the TLV431BE5TA?

SOT-25.

What is the operating temperature range?

-40°C to +125°C.

What is the reference voltage of the TLV431BE5TA?

1.24V.

What is the initial accuracy of the TLV431BE5TA?

±0.5%.

What is the output current rating for the TLV431BE5TA?

20mA.

What is the input voltage range for the TLV431BE5TA?

1.22V to 20V.

What type of voltage reference is the TLV431BE5TA?

Adjustable shunt reference.
