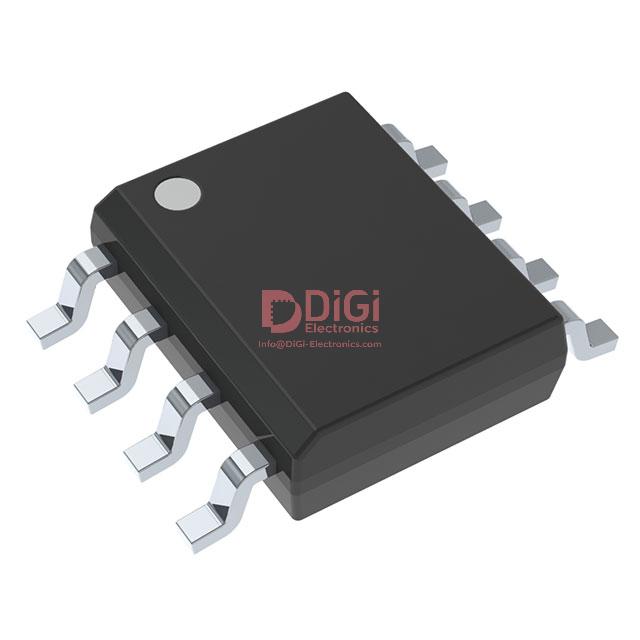

TLV431AIDRG4 The Texas Instruments TLV431AIDR is an adjustable shunt voltage reference IC. It offers an output voltage range from 1.24V to 6V with a tolerance of ±1%.
Mfr Part #:

TLV431AIDRG4

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLV431AIDR is an adjustable shunt voltage reference IC. It offers an output voltage range from 1.24V to 6V with a tolerance of ±1%.
✓ Total Stock: 232,000 pcs
$ Price Range: $1.32

TLV431AIDRG4 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
226,000 pcs
On Request
226000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
6,000 pcs
On Request
6000 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV431AIDRG4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Operating Temperature
SVHC Present
Tolerance
View Similar Products (0)

TLV431AIDRG4 Description

Short technical summary and product information.

The TLV431AIDR from Texas Instruments is a versatile shunt voltage reference designed for power management applications. It provides an adjustable output voltage ranging from a minimum of 1.24V up to a maximum of 6V, with a tight tolerance of ±1%.



This component is capable of delivering an output current of 15mA and operates with a low cathode current of 80 µA. The TLV431AIDR is specified for operation across a temperature range of -40°C to 85°C.



Packaged in an 8-SOIC surface-mount case, the TLV431AIDR is suitable for various electronic designs requiring a stable and adjustable voltage reference. Its surface mount capability facilitates integration into compact circuit boards.

TLV431AIDRG4 Quick Information

Product Type: Voltage Reference
Canonical Name: Texas Instruments TLV431AIDR Shunt Voltage Reference
Subcategory: Shunt

TLV431AIDRG4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV431AIDRG4 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV431AIDRG4 Features

  • Adjustable shunt voltage reference IC
  • Output voltage from 1.24V to 6V
  • ±1% output voltage tolerance
  • 15mA maximum output current
  • Surface mount 8-SOIC package

TLV431AIDRG4 Applications

  • Voltage monitoring and regulation circuits.
  • Power supply feedback loop compensation.
  • Adjustable precision voltage reference design.
  • Battery-powered portable equipment voltage control.
  • Industrial control system reference supply.

TLV431AIDRG4 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the output voltage range of the TLV431AIDRG4?

The TLV431AIDRG4 provides an adjustable output voltage from 1.24V to 6V.

What is the maximum output current of the TLV431AIDRG4?

The maximum output current is 15mA.

What is the operating temperature range of the TLV431AIDRG4?

The operating temperature range is -40°C to 85°C.

What package does the TLV431AIDRG4 come in?

The TLV431AIDRG4 is available in an 8-SOIC package for surface mount mounting.

What is the tolerance of the TLV431AIDRG4?

The tolerance is ±1%.

What is the cathode current of the TLV431AIDRG4?

The cathode current is 80µA.
