| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64,571 pcs
|
64571 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,396 pcs
|
7396 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,379 pcs
|
4379 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
4,320 pcs
|
4320 pcs | On Request | 1 | On Request | On Request | 12+Rohs | On Request | On Request | |
|
3,314 pcs
|
3314 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Operating Voltage | |
| Package Quantity | |
| Slew Rate | |
| Storage Temperature | |
| Supply Current | |
| Tape & Reel |
The Texas Instruments TLV342SIRUGR is a dual, low-voltage, low-power CMOS operational amplifier designed for rail-to-rail output swing capabilities. It operates from supply voltages as low as 1.5V up to 5.5V, making it suitable for a wide range of battery-powered applications.
Key electrical characteristics include a typical gain bandwidth of 2.3 MHz and a slew rate of 0.9 V/µs. The device offers a low input offset voltage of 0.3 mV (typical) and an ultra-low input bias current of 1 pA (typical) due to its PMOS input stage. For applications requiring higher precision, the A grade offers a maximum offset voltage of 1.25 mV at 25°C and 1.7 mV over the full temperature range of -40°C to 125°C.
The TLV342SIRUGR features a wide common-mode input voltage range extending from -0.2V to (V+ - 0.5V). It also includes a shutdown pin that reduces supply current to a typical 45 pA per channel when disabled. ESD protection exceeds JESD 22 standards with 2000V for the Human-Body Model and 750V for the Charged-device model.

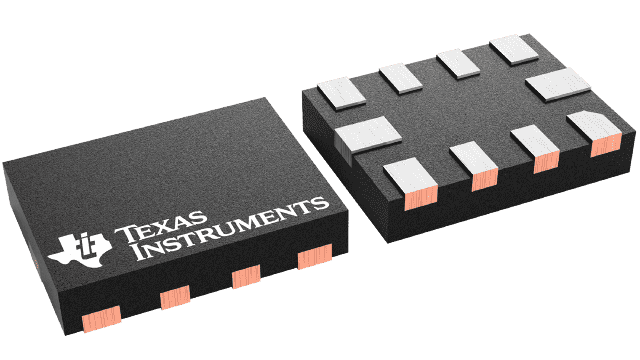

This operational amplifier is supplied in a 10-pin X2QFN package, suitable for surface mounting. It is typically supplied in a large tape and reel format with a standard quantity of 3,000 units.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLV342SIRUGR operates from 1.5 V to 5.5 V.
The operating temperature range is -40°C to 125°C.
The TLV342SIRUGR is available in a 10-pin X2QFN package.
The typical gain bandwidth is 2.3 MHz.
The typical slew rate is 0.9 V/µs.
The typical supply current is 70 µA per channel.
Yes, the device includes a shutdown feature with a typical turn-on time of 5 µs and shutdown current of 10 pA per channel.
