| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
364 pcs
|
364 pcs | On Request | 1 | On Request | On Request | 1349+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Control Interface | |
| Data Interface | |
| Dynamic Range, ADCs | |
| Features | |
| Mounting Type | |
| Number of ADCs | |
| Operating Temperature | |
| Resolution (Bits) | |
| S | |
| Sigma Delta | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Texas Instruments TLV320AIC3263IYZFT is an ultra-low power stereo audio codec designed for high-fidelity audio applications. It integrates a miniDSP for extensive signal processing, a mono Class-D amplifier for speaker output, and a DirectPath headphone driver that eliminates the need for large output DC-blocking capacitors.
This codec offers 2 analog-to-digital converter (ADC) channels and 2 digital-to-analog converter (DAC) channels, supporting sampling rates up to 192 kHz. It boasts an ADC SNR of 93 dB and a DAC SNR of 101 dB. The device features multiple digital audio interfaces including DSP, I2S, L&R, PCM, and TDM, along with I2C and SPI control interfaces.

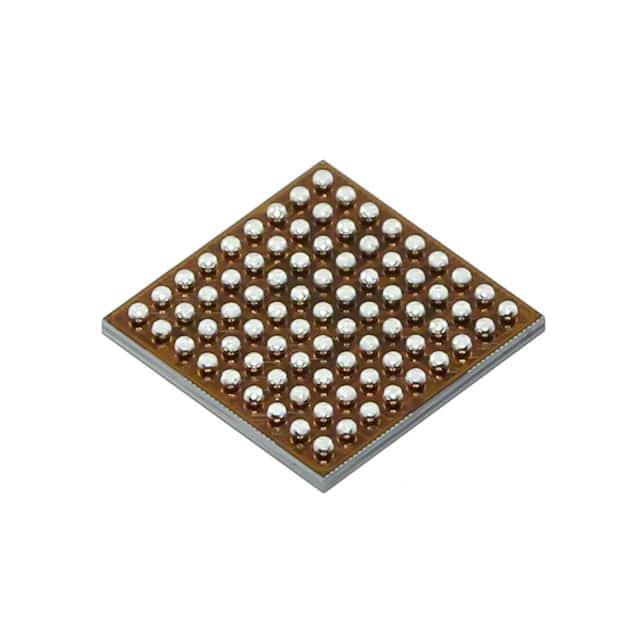

With 8 analog inputs and 7 analog outputs, the TLV320AIC3263IYZFT provides flexible connectivity. It supports up to 4 simultaneous digital microphone channels. The operating temperature range is -40°C to 85°C. The component is housed in an 81-ball WCSP (DSBGA) package measuring 4.81 mm x 4.81 mm x 0.625 mm.
Key features include PowerTune for adjusting power versus SNR, extensive algorithm support for voice and audio applications, and a programmable 12-bit SAR ADC. This makes it suitable for a wide range of consumer electronics and portable audio devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.72 | $2.72 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum sampling rate is 192 kHz.
The operating temperature range is -40°C to 85°C.
It has 2 ADC channels and 2 DAC channels.
It is supplied in an 81-ball WCSP (DSBGA) package.
Key features include a miniDSP, Class-D speaker amplifier, DirectPath headphone driver, and support for up to 4 digital microphone channels.
