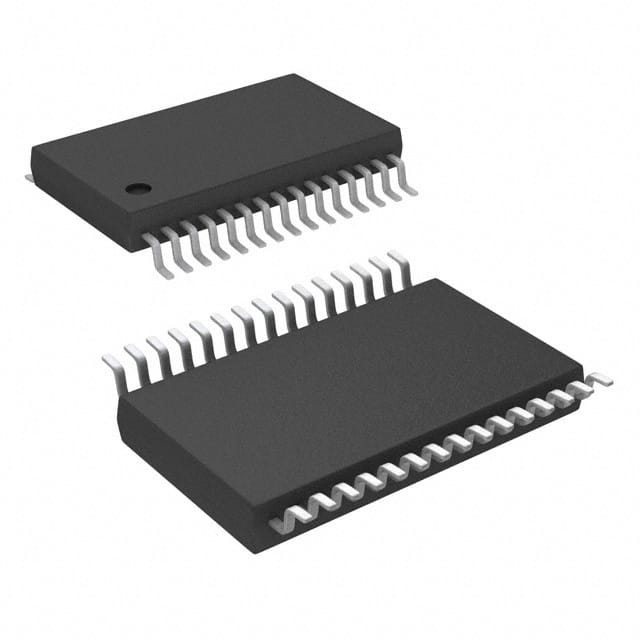

TLV320AIC12KIDBT The Texas Instruments TLV320AIC12KIDBT is a low-power, highly-integrated, programmable 16-bit mono CODEC. It features a 26 kSPS sampling rate and an 8-ohm speaker driver.
Mfr Part #:

TLV320AIC12KIDBT

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLV320AIC12KIDBT is a low-power, highly-integrated, programmable 16-bit mono CODEC. It features a 26 kSPS sampling rate and an 8-ohm speaker driver.
✓ Total Stock: 13,977 pcs
$ Price Range: $2.77

TLV320AIC12KIDBT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
12,777 pcs
On Request
12777 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV320AIC12KIDBT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Interface
Dynamic Range, ADCs
Mounting Type
Number of ADCs
Operating Temperature
Package Quantity
Resolution (Bits)
S
Sigma Delta
Supplier Device Package
Type
Voltage
View Similar Products (0)

TLV320AIC12KIDBT Description

Short technical summary and product information.

The Texas Instruments TLV320AIC12KIDBT is a programmable 16-bit mono CODEC designed for low-power applications. It integrates both analog-to-digital (ADC) and digital-to-analog (DAC) converters, utilizing a sigma-delta architecture.



Key electrical specifications include a typical ADC SNR of 84 dB and a DAC SNR of 92 dB. The device supports programmable sampling rates up to 26 kSPS with its on-chip filter, or up to 104 kSPS with the filter bypassed. It operates within a voltage range of 2.7V to 3.6V for analog signals and supports a maximum master clock of 100 MHz.



This CODEC features an integrated 8-ohm speaker driver, making it suitable for audio output applications. It includes selectable FIR/IIR filters, power management modes, and a serial interface compatible with DSPs. The device is housed in a 30-TSSOP package and is designed for surface mount.



Applications for the TLV320AIC12KIDBT include voice-band communication systems, digital still cameras, wireless accessories, hands-free car kits, and VoIP devices.

TLV320AIC12KIDBT Quick Information

Product Type: CODEC
Canonical Name: Texas Instruments TLV320AIC12KIDBT Mono CODEC
Subcategory: Audio CODECs

TLV320AIC12KIDBT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV320AIC12KIDBT Estimated Pricing

Qty Low High
1+ $2.77 $2.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV320AIC12KIDBT Features

  • 16-bit mono CODEC with sigma-delta architecture.
  • Supports sampling rates up to 26 kSPS.
  • Features 84dB ADC and 92dB DAC SNR.
  • Integrated 8-ohm speaker driver included.
  • Operates from 2.7V to 3.6V analog supply.

TLV320AIC12KIDBT Applications

  • Suitable for voice-band communication.
  • Used in digital still cameras.
  • Ideal for wireless accessories.
  • Applicable for hands-free car kits.
  • Designed for VoIP devices.

TLV320AIC12KIDBT FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical SNR for the ADC and DAC on the TLV320AIC12KIDBT?

The typical SNR for the ADC is 84 dB, and for the DAC is 92 dB.

What is the maximum sampling rate supported by the TLV320AIC12KIDBT?

The device supports a maximum sampling rate of 26 kSPS with the on-chip filter, and up to 104 kSPS with the filter bypassed.

What is the operating voltage range for the TLV320AIC12KIDBT?

The analog operating voltage range is 2.7V to 3.6V.

What package type is the TLV320AIC12KIDBT available in?

The TLV320AIC12KIDBT is available in a 30-TSSOP package.

What is the operating temperature range for this CODEC?

The operating temperature range is -40°C to 85°C.
