TLV272DMR2G The TLV272DMR2G is a dual general-purpose operational amplifier from On Semiconductor. It offers a 3 MHz gain bandwidth product and a 2.8V/µs slew rate.
Mfr Part #:

TLV272DMR2G

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The TLV272DMR2G is a dual general-purpose operational amplifier from On Semiconductor. It offers a 3 MHz gain bandwidth product and a 2.8V/µs slew rate.
✓ Total Stock: 31,325 pcs
$ Price Range: $1.32

TLV272DMR2G Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
31,325 pcs
31325 pcs On Request 1 On Request On Request On Request On Request On Request

TLV272DMR2G Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present

TLV272DMR2G Description

Short technical summary and product information.

The TLV272DMR2G is a dual general-purpose operational amplifier manufactured by On Semiconductor. This device is designed for a wide range of applications, featuring a 3 MHz gain bandwidth product and a 2.8V/µs slew rate. It supports rail-to-rail output and operates over a broad supply voltage span from 2.7V to 36V.



Key electrical characteristics include a low input bias current of 5 pA and an input offset voltage of 500 µV. The supply current is 465 µA per channel, with an output current capability of 65 mA per channel. The operating temperature range is -40°C to 125°C.

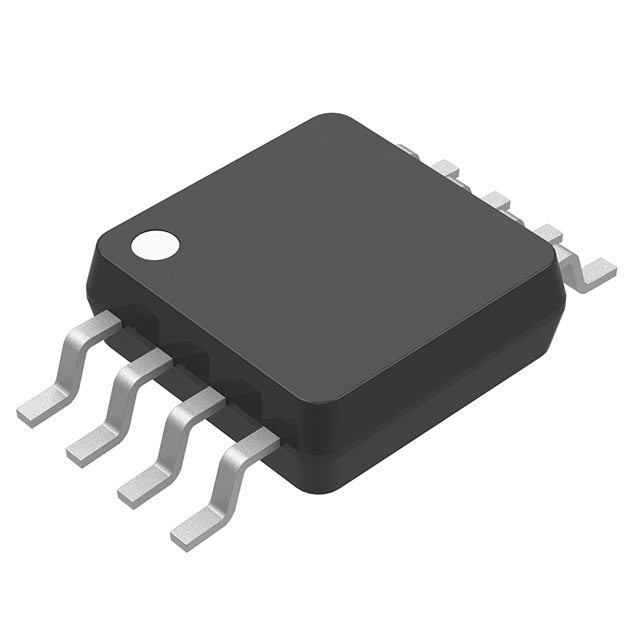

This amplifier is available in a surface-mount 8-MSOP package, suitable for various electronic designs. The AEC-Q100 series designation indicates its suitability for automotive applications.



Environmental compliance includes RoHS3 compliance and a Moisture Sensitivity Level (MSL) of 1. The REACH status is unaffected.

TLV272DMR2G Quick Information

Product Type: Operational Amplifier
Series: AEC-Q100
Canonical Name: TLV272DMR2G Dual General Purpose Operational Amplifier
Subcategory: General Purpose

TLV272DMR2G Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV272DMR2G Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV272DMR2G Features

  • Dual general-purpose operational amplifier.
  • 3 MHz gain bandwidth product.
  • 2.8V/µs slew rate.
  • Rail-to-rail output.
  • Automotive AEC-Q100 qualified.

TLV272DMR2G Applications

  • Suitable for automotive applications.
  • General purpose amplification needs.
  • Low power consumption designs.
  • Compact electronic circuits.

TLV272DMR2G FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range of the TLV272DMR2G?

The TLV272DMR2G operates from -40°C to +125°C.

What is the supply voltage range for the TLV272DMR2G?

The supply voltage range is 2.7 V to 36 V.

What package does the TLV272DMR2G come in?

It is available in 8-TSSOP or 8-MSOP surface-mount packages.

What is the gain bandwidth product of the TLV272DMR2G?

The gain bandwidth product is 3 MHz.

Does the TLV272DMR2G have rail-to-rail output?

Yes, the output type is rail-to-rail.
