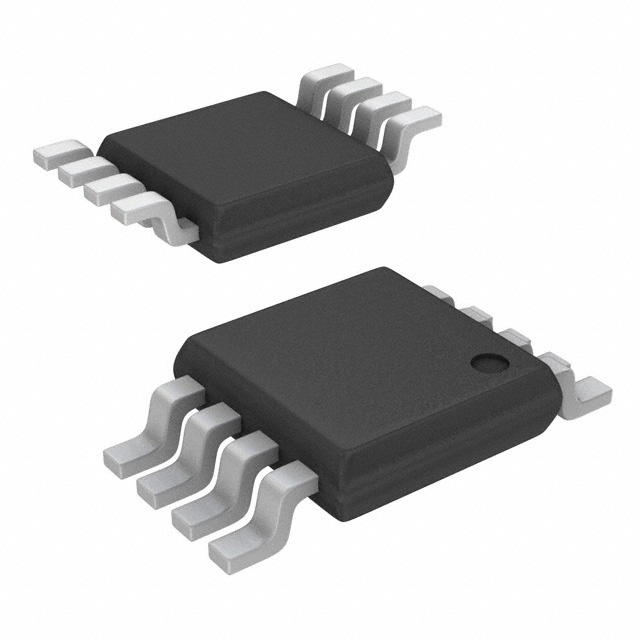

TLV272CM8-13 The TLV272CM8-13 is a CMOS amplifier from Diodes Incorporated featuring 2 circuits and Rail-to-Rail output. It operates with a supply voltage span from 2.7V to 16V.
Mfr Part #:

TLV272CM8-13

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The TLV272CM8-13 is a CMOS amplifier from Diodes Incorporated featuring 2 circuits and Rail-to-Rail output. It operates with a supply voltage span from 2.7V to 16V.
✓ Total Stock: 42,244 pcs
$ Price Range: $1.32

TLV272CM8-13 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
32,338 pcs
On Request
32338 pcs On Request 1 On Request On Request 19+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
9,906 pcs
On Request
9906 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLV272CM8-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Amplifier Type
Lead Style
Mounting Type
Number of Circuits
Operating Temperature
Output Type
Slew Rate
Supplier Device Package
View Similar Products (0)

TLV272CM8-13 Description

Short technical summary and product information.

The TLV272CM8-13 is a dual-circuit CMOS amplifier manufactured by Diodes Incorporated. It offers a Rail-to-Rail output stage, making it suitable for applications requiring precise signal amplification near the power supply rails.



Key electrical specifications include a gain bandwidth product of 1.9 MHz and a slew rate of 2V/µs. The amplifier exhibits a low input bias current of 1 pA and an input offset voltage of 500 µV. The supply current is 550µA per channel, and it can deliver up to 8 mA per channel of output current.



This device operates within a wide supply voltage span, from a minimum of 2.7 V to a maximum of 16 V. The operating temperature range is from 0°C to 70°C. It is available in an 8-MSOP package and is designed for surface mount applications.



The TLV272CM8-13 is RoHS3 Compliant, REACH Unaffected, and has an MSL rating of 1.

TLV272CM8-13 Quick Information

Product Type: CMOS Amplifier
Canonical Name: Diodes Incorporated TLV272CM8-13 CMOS Amplifier
Subcategory: Instrumentation, OP Amps, Buffer Amps

TLV272CM8-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLV272CM8-13 Estimated Pricing

Qty Low High
1+ $1.32 $1.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLV272CM8-13 Features

  • Dual circuit CMOS amplifier.
  • Rail-to-Rail output capability.
  • Wide 2.7V to 16V supply range.
  • Low input bias current of 1 pA.
  • Surface mount 8-MSOP package.

TLV272CM8-13 Applications

  • Suitable for low voltage applications.
  • Ideal for signal conditioning circuits.
  • Used in battery powered devices.
  • General purpose amplification needs.

TLV272CM8-13 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TLV272CM8-13?

The operating temperature range is 0°C to 70°C.

What is the supply voltage span for this amplifier?

The supply voltage span is from 2.7 V to 16 V.

What type of output does the TLV272CM8-13 offer?

It offers a Rail-to-Rail output type.

What is the gain bandwidth product of the TLV272CM8-13?

The gain bandwidth product is 1.9 MHz.

What is the package type for the TLV272CM8-13?

The package type is 8-MSOP.
