| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
989 pcs
|
989 pcs | On Request | 1 | On Request | On Request | 2018+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Number of Channels | |
| Number of Pins | |
| Operating Temperature Range | |
| Output Current | |
| Supply Current |
The Texas Instruments TLV2623IDGSR is a dual, rail-to-rail output operational amplifier designed for single-supply operation. It features a wide bandwidth of 11 MHz and a slew rate of 6 V/µs, making it suitable for various signal processing applications.
This op-amp operates over a total supply voltage range of 2.5V to 5.5V and has a typical supply current of 0.8mA per channel. The input bias current is a maximum of 50pA, and it boasts a high common-mode rejection ratio of 99dB.

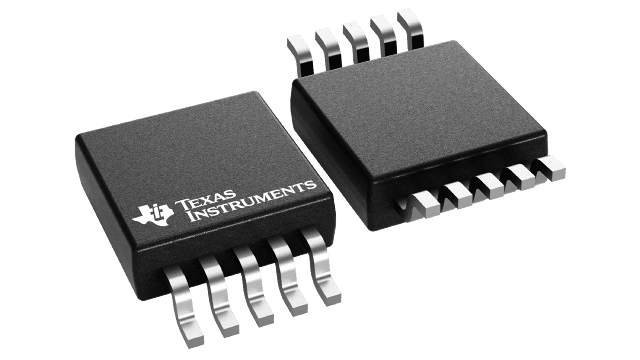

The TLV2623IDGSR is specified for an industrial operating temperature range of -40°C to 125°C. It is available in a VSSOP (DGS) package, measuring 3mm x 4.9mm, with 10 leads.
Key electrical characteristics include a typical input noise voltage of 53 nV/√Hz at 1kHz and an offset voltage maximum of 3.5mV at 25°C. The device also includes a shutdown feature for power saving.
The TLV2623IDGSR operates from a supply voltage range of 2.7 V to 5.5 V.
The TLV2623IDGSR is available in a VSSOP-10 package with dimensions 3 mm × 4.9 mm and 10 pins.
The operating temperature range is -40°C to 125°C.
The typical gain bandwidth product is 11 MHz.
The typical slew rate is 6 V/µs.
The typical supply current per channel is 0.8 mA.
Yes, the TLV2623IDGSR features rail-to-rail output swing.
