| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
378 pcs
|
378 pcs | On Request | 1 | On Request | On Request | 02+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

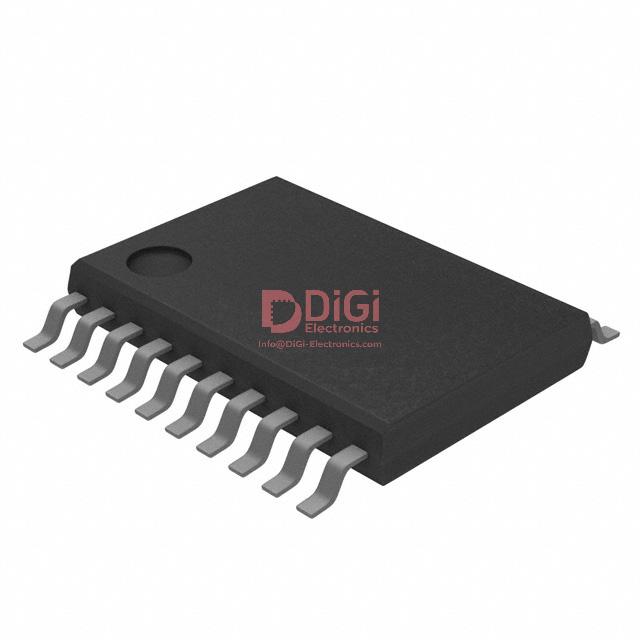

The TLV1548IDB from Texas Instruments is a 10-bit successive approximation analog-to-digital converter (ADC) designed for low-voltage applications. It offers 8 analog input channels and supports a wide single-supply voltage range from 2.7V to 5.5V.
This ADC features an SPI-compatible serial interface for easy integration with microprocessors and DSPs. It includes an inherent sample-and-hold function and a built-in analog multiplexer. The device operates within a temperature range of -40°C to 85°C and is available in a 20-SSOP surface-mount package.
Key electrical characteristics include a 10-bit resolution and a sampling rate of 87kSPS. The device also supports programmable power-down modes for power efficiency. Its analog input range is from 0V to VCC, and it utilizes an external reference type.
The TLV1548IDB is suitable for various data acquisition applications where precise analog-to-digital conversion is required in a compact form factor. Its robust design and wide operating voltage make it a versatile component for embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLV1548IDB has a resolution of 10 bits.
The TLV1548IDB features 8 analog input channels.
The data interface for the TLV1548IDB is SPI.
The TLV1548IDB operates within a voltage range of 2.7V to 5.5V.
The TLV1548IDB is supplied in a 20-SSOP package.
The TLV1548IDB operates between -40°C and 85°C.
The sampling rate for the TLV1548IDB is 87kSPS.
