| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,568 pcs
|
2568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Architecture | |
| Automotive Grade | |
| Configuration | |
| Data Interface | |
| Industrial Grade | |
| Input Type | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Package / Case | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

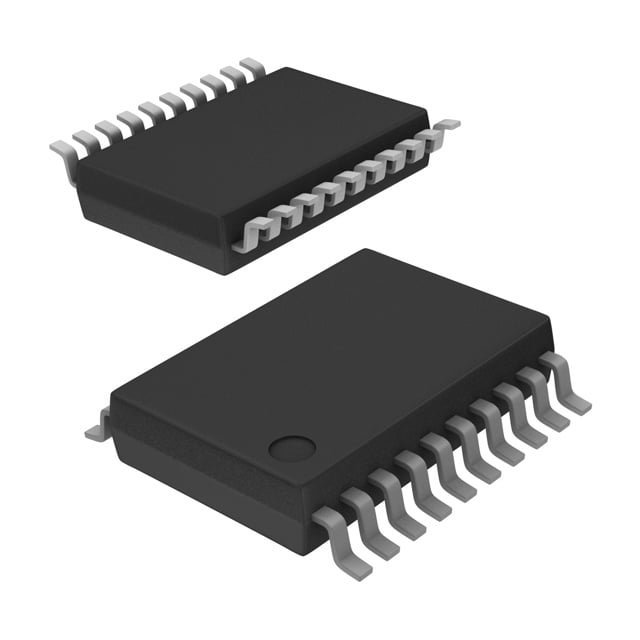

The TLV1548CDB from Texas Instruments is a 10-bit, switched-capacitor Successive Approximation Register (SAR) analog-to-digital converter. It offers a wide single-supply operation range of 2.7V to 5.5V and features a low power-down current of 1 μA. The device includes an 8-channel analog multiplexer, allowing selection from eight external analog inputs or three internal self-test voltages.
With a conversion time of less than 10 μs and a sampling rate of up to 87kSPS, the TLV1548CDB is suitable for various data acquisition applications. It provides an SPI/QSPI compatible serial interface for easy integration with microprocessors and TMS320 DSPs. The converter incorporates an inherent sample-and-hold function and an end-of-conversion (EOC) flag.
Designed for surface mounting, the TLV1548CDB comes in a 20-SSOP package. It operates within a temperature range of 0°C to 70°C. The device supports asynchronous start of conversion for extended sampling and features programmable power and conversion rates for optimized performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.35 | $8.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLV1548CDB has a resolution of 10 bits.
The TLV1548CDB operates from a 2.7V to 5.5V supply.
The TLV1548CDB operates between 0°C and 70°C.
The TLV1548CDB is available in a 20-SSOP package.
The TLV1548CDB is RoHS3 Compliant.
The TLV1548CDB has 8 external analog input channels plus 3 internal self-test channels.
The conversion time for the TLV1548CDB is less than or equal to 10 μs.
