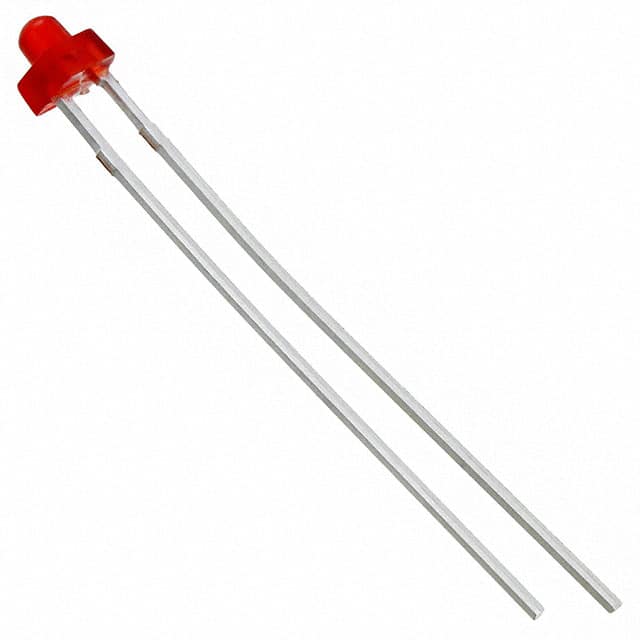

TLUR2401 The Vishay Dale TLUR2401 is a red, diffused LED with a 1.8mm Miniplast package. It is designed for general indicating and lighting purposes.
Mfr Part #:

TLUR2401

Available from 2 distributors
Mfr Name: Vishay
Vishay
The Vishay Dale TLUR2401 is a red, diffused LED with a 1.8mm Miniplast package. It is designed for general indicating and lighting purposes.
✓ Total Stock: 3,843 pcs
$ Price Range: $0.06

TLUR2401 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
3,823 pcs
On Request
3823 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLUR2401 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Configuration
Current
Height (Max)
Junction Temperature
Lead Style
Lens Style
Lens Transparency
Millicandela Rating
Mounting Type
Power Dissipation
Supplier Device Package
Technology
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

TLUR2401 Description

Short technical summary and product information.

The Vishay Dale TLUR2401 is a standard series LED with a 1.8mm Miniplast package, suitable for general indicating and lighting applications. This through-hole component features a red, diffused lens with a round, domed top, providing a typical viewing angle of 40 degrees.



Electrically, the LED operates with a typical forward voltage of 2V at 10mA, and a typical luminous intensity of 18mcd. The wavelength is centered around 640nm. Absolute maximum ratings include a DC forward current of 20mA and a power dissipation of 60mW at 55°C.



The operating temperature range is from -40°C to +100°C, with a storage temperature range of -55°C to +100°C. The component is designed for DC and pulse operation and is end-to-end stackable with a center-to-center spacing of 0.1" (2.54 mm).



This LED is manufactured using GaAsP on GaP technology. It is available in a radial package and is suitable for through-hole mounting.

TLUR2401 Quick Information

Product Type: LED
Series: standard
Canonical Name: Vishay Dale TLUR2401 Red Diffused 1.8mm Miniplast Through Hole LED
Subcategory: Indication LED

TLUR2401 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLUR2401 Estimated Pricing

Qty Low High
1+ $0.06 $0.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLUR2401 Features

  • Red diffused 1.8mm Miniplast LED.
  • Through-hole mounting type.
  • Typical 18mcd luminous intensity.
  • 2V typical forward voltage.
  • Wide operating temperature range.

TLUR2401 Applications

  • Used for indicator and lighting purposes.
  • Suitable for general signaling applications.
  • Ideal for low-current LED illumination.
  • Applicable in electronic display backlighting.
  • Suitable for use in diffused LED indicators.

TLUR2401 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the typical forward voltage for the TLUR2401 LED?

The typical forward voltage for the TLUR2401 LED is 2V at a test current of 10mA.

What is the typical luminous intensity of the TLUR2401 LED?

The typical luminous intensity of the TLUR2401 LED is 18mcd at a test current of 10mA.

What is the wavelength of the TLUR2401 LED?

The typical wavelength of the TLUR2401 LED is 640nm.

What is the viewing angle of the TLUR2401 LED?

The typical viewing angle of the TLUR2401 LED is 40 degrees.

What is the package type for the TLUR2401 LED?

The TLUR2401 LED is supplied in a 1.8mm Miniplast package.

What is the operating temperature range for the TLUR2401 LED?

The TLUR2401 LED can operate in a temperature range of -40°C to +100°C.
