| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Receiver Hysteresis | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Infineon Technologies TLT9251VLEXUMA1 is a high-speed CAN FD transceiver, compliant with ISO 11898-2 (2016) and SAE J2284-4/-5 standards. It is qualified for automotive applications according to AEC-Q100 Grade 0, with an operating temperature range of -40°C to 150°C.
This transceiver features a VIO input for voltage adaptation to microcontroller interfaces (3.3V & 5V) and a Bus Wake-up Pattern (WUP) function. It offers very low electromagnetic emission (EME) and wide common mode range for electromagnetic immunity (EMI). The device provides excellent ESD robustness and is protected against automotive transients.

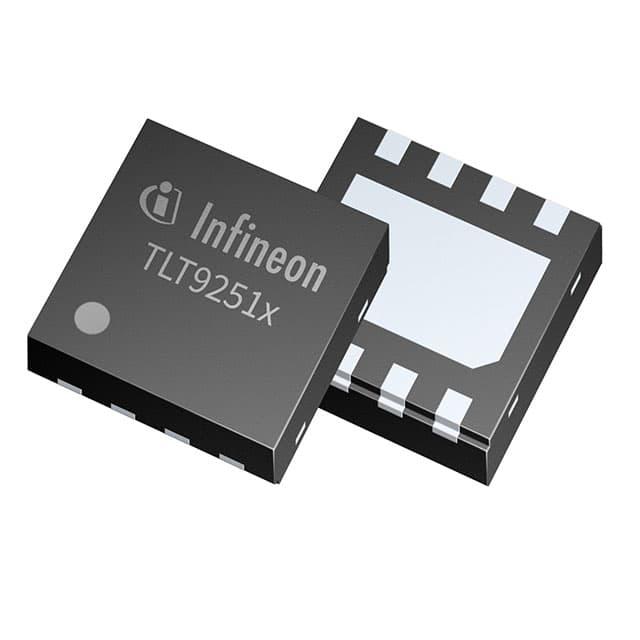

Packaged in a small, leadless PG-TSON-8 (8-TDFN Exposed Pad) package, the TLT9251VLEXUMA1 is suitable for surface mount applications. It supports automated optical inspection (AOI) and is RoHS compliant.
Key features include guaranteed loop delay symmetry for CAN FD data frames, a stand-by mode with minimized quiescent current, and CAN short circuit proofing. It also includes a TxD time-out function and overtemperature protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 4.5V to 5.5V.
The operating temperature range is -40°C to 150°C.
It is supplied in a PG-TSON-8 package, also described as 8-TDFN Exposed Pad.
Yes, it is RoHS3 Compliant.
It supports data rates up to 5Mbps.
It is fully compliant with ISO 11898-2 (2016) and SAE J2284-4/-5.
