| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
92 pcs
|
92 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

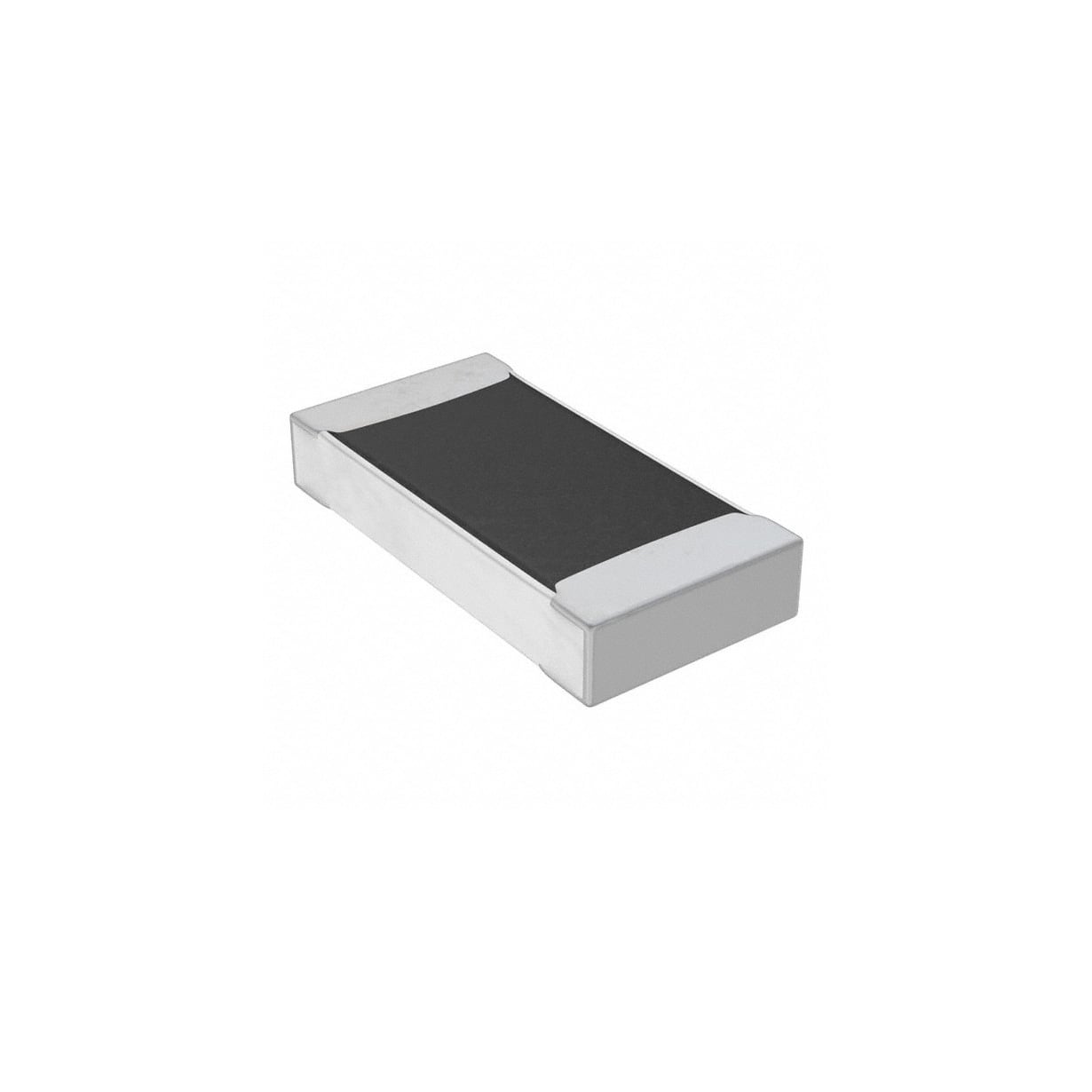

This TE Connectivity TLRP3A30CR003FTDG is a surface mount chip resistor from the TLRP series. It offers a low resistance value of 3 mOhms with a tight tolerance of ±1% and a power rating of 3W. The component is designed for surface mount applications and comes in a 2512 (6432 Metric) package.
Key features include its metal element composition, making it suitable for current sensing applications. It also boasts Anti-Sulfur properties and Automotive AEC-Q200 qualification, indicating its suitability for demanding environments. The operating temperature range is -55°C to 170°C, with a temperature coefficient of ±25ppm/°C.
The resistor's dimensions are 6.40mm in length and 3.20mm in width, with a height of 0.90mm. It has 2 terminations. The product is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3 mOhms.
The tolerance is ±1%.
The power rating is 3W.
The operating temperature range is -55°C to 170°C.
The resistor is available in a 2512 (6432 Metric) package.
Yes, it is Automotive AEC-Q200 qualified.
