| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
555 pcs
|
555 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Termination Style | |
| Tolerance | |
| Width |

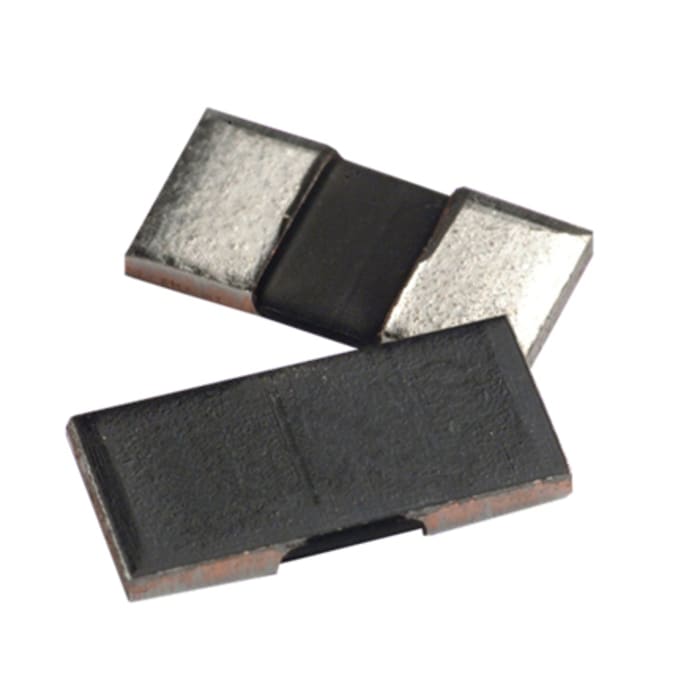

The KOA Speer Electronics TLR3APDTE1L00F75 is a high-performance metal element current sense resistor designed for demanding applications. It offers a low resistance value of 1mΩ with a tight tolerance of ±1%, and a power rating of 5W, making it suitable for accurate current monitoring.
This surface-mount resistor comes in a 2512 package with a low profile height of 0.6mm. It operates across a wide temperature range of -65°C to 170°C and features a temperature coefficient of ±75ppm/°C. The component is AEC-Q200 tested, indicating its suitability for automotive applications.
Key specifications include a resistance of 1mΩ, a power rating of 5W, and a tolerance of ±1%. The 2512 package dimensions are 6.35mm in length and 3.18mm in width, with a height of 0.6mm. It is designed for reflow soldering.
This resistor is ideal for applications requiring precise current sensing, such as power management systems, motor control, and battery monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 1mΩ.
The power rating is 5W.
The tolerance is ±1%.
The operating temperature range is -65°C to 170°C.
The resistor is in a 2512 package.
Yes, the TLR3APDTE1L00F75 resistor is AEC-Q200 tested.
