| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

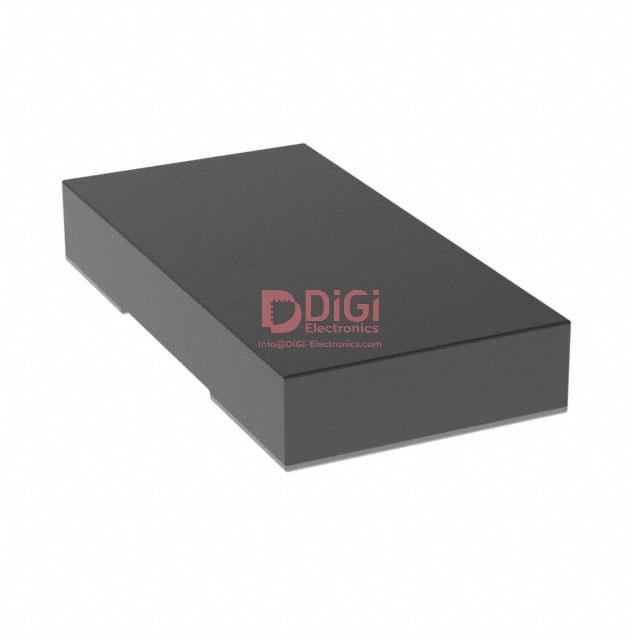

This KOA Speer TLR2HWDTE3L00F50 is a surface mount chip resistor designed for current sensing applications. It offers a low resistance value of 3mΩ with a tight tolerance of ±1% and a power rating of 2W. The resistor operates within a temperature range of -65°C to 170°C and has a temperature coefficient of ±50ppm/°C.
The component is housed in a 2010 (5025 Metric) package, measuring 5.00mm in length and 2.50mm in width, with a height of 0.80mm. Its metal element composition makes it suitable for high-current applications. The TLR2HWDTE3L00F50 is also AEC-Q200 tested, making it suitable for automotive environments.
Key electrical characteristics include its low resistance and precise tolerance, crucial for accurate current measurement. The surface mount design facilitates integration into compact electronic circuits. Its robust construction and operating temperature range ensure reliability in demanding conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 3 mΩ.
The power rating is 2W.
The tolerance is ±1%.
The operating temperature range is -65°C to 170°C.
It is in a 2010 (5025 Metric) package.
Yes, it is AEC-Q200 tested and qualified.
