| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
232 pcs
|
232 pcs | On Request | 1 | On Request | On Request | 1450+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Data Rate | |
| Input Type | |
| Inputs | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay tpLH | |
| Rise | |
| Supplier Device Package | |
| Voltage |

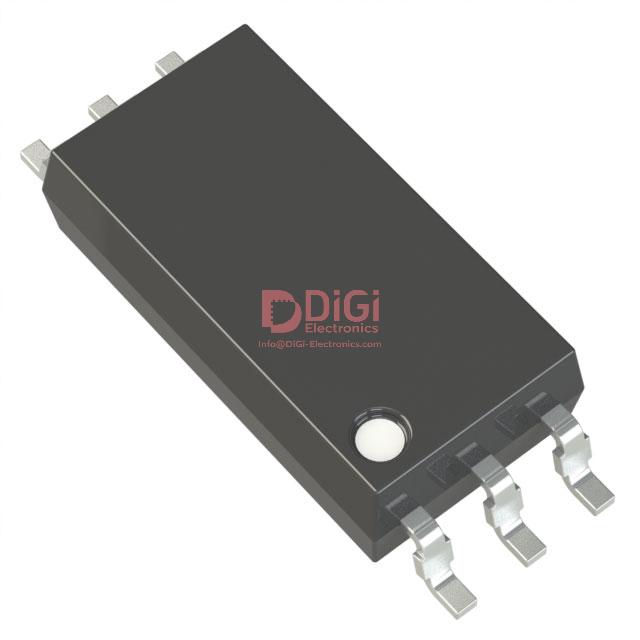

The Toshiba TLP718(TP,F) is a logic output optoisolator designed for reliable signal isolation in various electronic systems. It provides a high isolation voltage of 5000Vrms, ensuring safety and signal integrity.
Key electrical characteristics include a common-mode transient immunity of 10kV/µs (min) and a maximum switching time of 250ns. The device operates with a maximum input current of 20mA and supports a data rate of 5Mbps. It features a push-pull, totem pole output type and a DC input type.
This optoisolator is housed in a 6-SOIC package with a surface mount type, making it suitable for compact PCB designs. The operating temperature range is from -40°C to 100°C, allowing for use in demanding environments. The supplier device package is a 6-SDIP Gull Wing.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLP718(TP,F) optoisolator has an isolation voltage of 5000Vrms.
The TLP718(TP,F) optoisolator has a minimum common-mode transient immunity of 10kV/µs.
The maximum switching time (tpLH) for the TLP718(TP,F) optoisolator is 250ns.
The TLP718(TP,F) optoisolator can operate in a temperature range of -40°C to 100°C.
The TLP718(TP,F) optoisolator is available in a 6-SOIC (0.268", 6.80mm Width) surface mount package.
