| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,810 pcs
|
42810 pcs | On Request | 1 | On Request | On Request | 2017+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Static dV | |
| Supplier Device Package | |
| Turn On Time | |
| Voltage | |
| Zero Crossing Circuit |

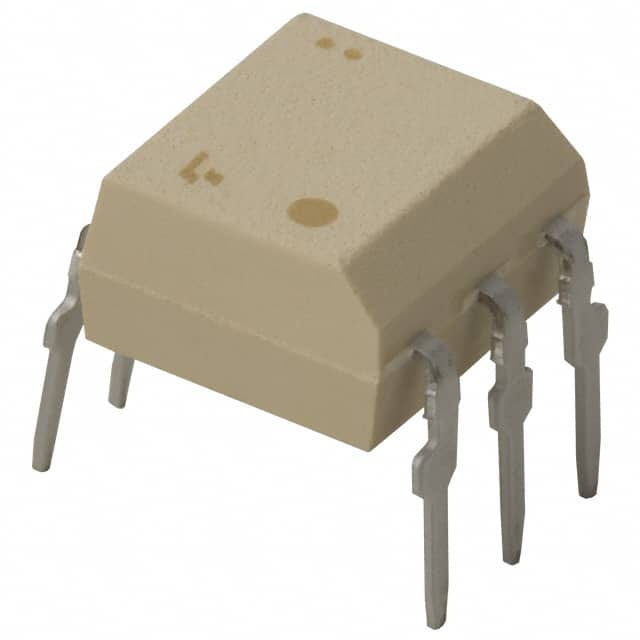

The Toshiba TLP548J(TP1,F) is an optocoupler designed for Triac and SCR output applications. It provides a high isolation voltage of 2500Vrms, making it suitable for applications requiring electrical isolation.
Key electrical specifications include a maximum continuous output current of 150mA and a forward current of 50mA with a typical forward voltage of 1.15V. The device features an SCR output type and does not include a zero-crossing circuit. Its turn-on time is rated at a maximum of 10µs.
This optocoupler operates within a temperature range of -40°C to +100°C. It is supplied in a 6-DIP package and is designed for through-hole mounting.
The TLP548J(TP1,F) is manufactured by Toshiba and falls under the category of Triac & SCR Output Optocouplers.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.60 | $7.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 2500Vrms.
The maximum continuous output current is 150 mA.
The operating temperature range is -40°C to +100°C.
It is supplied in a 6-DIP package.
No, it does not have a zero-crossing circuit.
