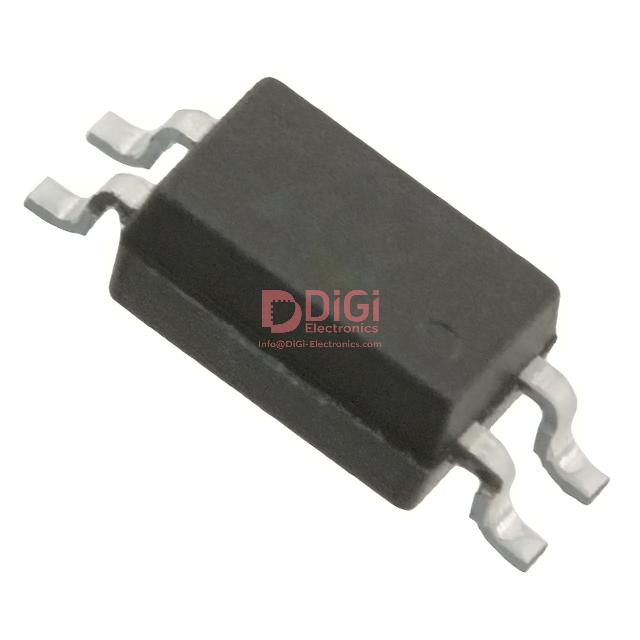

TLP283 The Toshiba TLP283 is a compact optoisolator designed for surface mount applications. It features 2500Vrms isolation and a transistor output.
Mfr Part #:

TLP283

Available from 2 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TLP283 is a compact optoisolator designed for surface mount applications. It features 2500Vrms isolation and a transistor output.
✓ Total Stock: 926,390 pcs
$ Price Range: $0.33

TLP283 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
904,000 pcs
On Request
904000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
22,390 pcs
On Request
22390 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP283 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Current
Lead Style
Operating Temperature Range
Output Current
Output Voltage
Reverse Current
Reverse Voltage
View Similar Products (0)

TLP283 Description

Short technical summary and product information.

The Toshiba TLP283 is a small and thin optocoupler suitable for surface mount assembly. It consists of a phototransistor optically coupled to a gallium arsenide infrared emitting diode.



Key electrical specifications include a collector-emitter voltage of 100V, a minimum current transfer ratio of 100% at 1mA, and an isolation voltage of 2500Vrms. The device operates within a temperature range of -55°C to 100°C.



This optoisolator is designed for applications such as on-board power supplies and programmable controllers. Its compact size and surface mount capability make it ideal for space-constrained designs.

TLP283 Quick Information

Product Type: Optoisolator
Series: TLP
Canonical Name: Toshiba TLP283 Optoisolator
Subcategory: Transistor, Photovoltaic Output Optoisolators

TLP283 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLP283 Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP283 Features

  • 2500Vrms isolation voltage for galvanic isolation.
  • 100V minimum collector-emitter breakdown voltage.
  • 100% min current transfer ratio at 1mA.
  • 4-SOP surface-mount package for compact designs.
  • Wide operating temperature range -55°C to 100°C.

TLP283 Applications

  • Signal isolation in industrial control systems.
  • Feedback isolation in power supply circuits.
  • Digital logic isolation interfaces.
  • Used in communication equipment for noise reduction.

TLP283 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the TLP283?

The minimum collector-emitter breakdown voltage is 100V.

What is the package type for the TLP283?

4-SOP.

What is the operating temperature range?

-55°C to 100°C.

What is the isolation voltage?

2500 Vrms minimum.

What is the current transfer ratio (CTR)?

100% minimum to 400% maximum at 1mA.

What are the typical turn-on and turn-off times?

Turn-on: 7.5µs, Turn-off: 70µs.

What is the maximum forward current?

50 mA.
