TLP250 The Toshiba TLP250LF1F is an optical coupling gate driver featuring 1.5A peak output current and 2500Vrms isolation. It is designed for surface mount applications.
Mfr Part #:

TLP250

Available from 5 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TLP250LF1F is an optical coupling gate driver featuring 1.5A peak output current and 2500Vrms isolation. It is designed for surface mount applications.
✓ Total Stock: 238,416 pcs
$ Price Range: $7.60

TLP250 Available from 5 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP250 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Forward Voltage
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Voltage
Propagation Delay
Reverse Voltage
Storage Temperature
Supply Current
Supply Voltage
Technology
View Similar Products (0)

TLP250 Description

Short technical summary and product information.

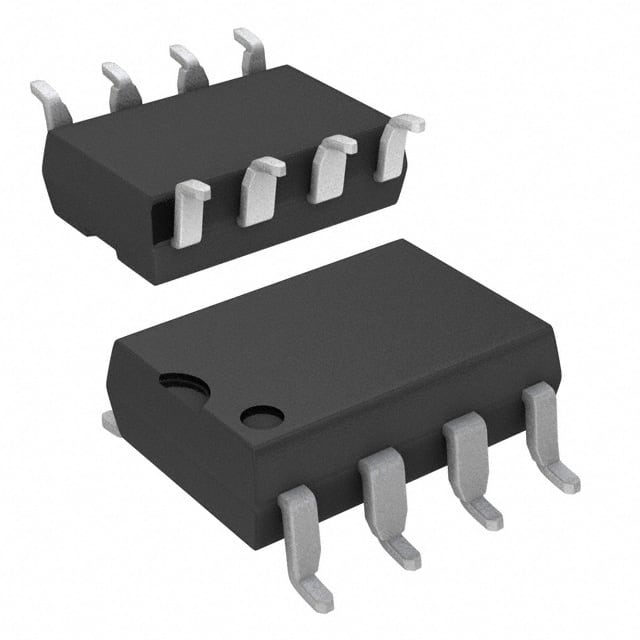

The TLP250LF1F from Toshiba Semiconductor and Storage is an optical coupling gate driver designed for high-performance applications. It offers a peak output current of 1.5A and a robust isolation voltage of 2500Vrms, ensuring reliable operation in demanding environments.



This gate driver operates with an output supply voltage range of 15V to 30V and features a typical forward voltage of 1.6V with a maximum DC forward current of 20mA. The common mode transient immunity is rated at a minimum of 5kV/µs, providing excellent noise suppression. Its propagation delay is a maximum of 500ns.



The TLP250LF1F is suitable for a wide operating temperature range of -20°C to 85°C. It comes in a compact 8-SMD, Gull Wing package, designed for surface mounting. The device is RoHS3 compliant, indicating adherence to environmental standards.



This component is ideal for power management applications requiring efficient and reliable gate driving capabilities. Its specifications make it a suitable choice for various industrial and communication systems.

TLP250 Quick Information

Product Type: Gate Driver
Canonical Name: TLP250LF1F Gate Driver
Subcategory: Optoisolators - Triac, SCR Output

TLP250 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLP250 Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP250 Features

  • 1.5A peak output current capability.
  • 2500Vrms high isolation voltage.
  • Surface mount 8-SMD Gull Wing package.
  • Wide operating temperature range.
  • RoHS3 compliant for environmental standards.

TLP250 Applications

  • Ideal for power management circuits.
  • Suitable for industrial control systems.
  • Used in communication infrastructure.
  • Provides reliable gate driving.

TLP250 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the peak output current of the TLP250LF1F?

The TLP250LF1F has a peak output current of 1.5A.

What is the isolation voltage for the TLP250LF1F?

The isolation voltage for the TLP250LF1F is 2500Vrms.

What is the operating temperature range of the TLP250LF1F?

The TLP250LF1F operates between -20°C and 85°C.

What type of package is the TLP250LF1F in?

The TLP250LF1F is in an 8-SMD, Gull Wing package.

Is the TLP250LF1F RoHS compliant?

The TLP250LF1F is RoHS3 Compliant.
