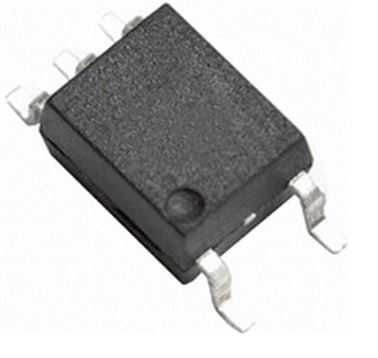

TLP2361TPL-E The Toshiba TLP2361TPL-E is a logic output optoisolator featuring 3750 VRMS isolation voltage and a SO6-5 SMT package.
Mfr Part #:

TLP2361TPL-E

Available from 3 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TLP2361TPL-E is a logic output optoisolator featuring 3750 VRMS isolation voltage and a SO6-5 SMT package.
✓ Total Stock: 110,366 pcs
$ Price Range: $0.50

TLP2361TPL-E Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
109,576 pcs
On Request
109576 pcs On Request 1 On Request On Request On Request On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
678 pcs
On Request
678 pcs On Request 1 On Request On Request N/A On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
112 pcs
On Request
112 pcs On Request 1 On Request On Request 1928+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP2361TPL-E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Type
Input Voltage
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Type
Supply Voltage
View Similar Products (0)

TLP2361TPL-E Description

Short technical summary and product information.

The Toshiba TLP2361TPL-E is a logic output optoisolator designed for signal isolation applications. It offers a high isolation voltage of 3750 VRMS, ensuring robust protection in various electronic circuits.



This optocoupler operates with a supply voltage range of 2.7V to 5.5V and features a DC input type. Key electrical characteristics include a typical input voltage of 1.5V, a typical output current of 10mA, and a propagation delay of 80 ns for both low and high states. The output stage is configured as a push-pull, totem pole.



Packaged in an SO6-5 case, the TLP2361TPL-E is designed for surface mount technology (SMT) assembly and comes on a reel. It operates within a wide temperature range of -40°C to +125°C, making it suitable for demanding environments.

TLP2361TPL-E Quick Information

Product Type: Optoisolator - Logic Output
Canonical Name: Toshiba TLP2361(TPL,E Optoisolator - Logic Output
Subcategory: Logic Output

TLP2361TPL-E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLP2361TPL-E Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP2361TPL-E Features

  • 3750 VRMS isolation voltage.
  • 80 ns typical propagation delay.
  • Push-pull, totem pole output.
  • SO6-5 SMT package on reel.
  • Wide -40°C to +125°C operating temperature.

TLP2361TPL-E Applications

  • Ideal for digital signal isolation.
  • Suitable for power supply control.
  • Used in industrial automation systems.
  • Applicable in communication interfaces.

TLP2361TPL-E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the TLP2361TPL-E?

3750 Vrms.

What is the propagation delay of this optocoupler?

80 ns typical (low/high).

What is the operating temperature range?

-40 to +125 °C.

What is the supply voltage range?

2.7 V to 5.5 V.

How many channels does the TLP2361TPL-E have?

1 channel.
