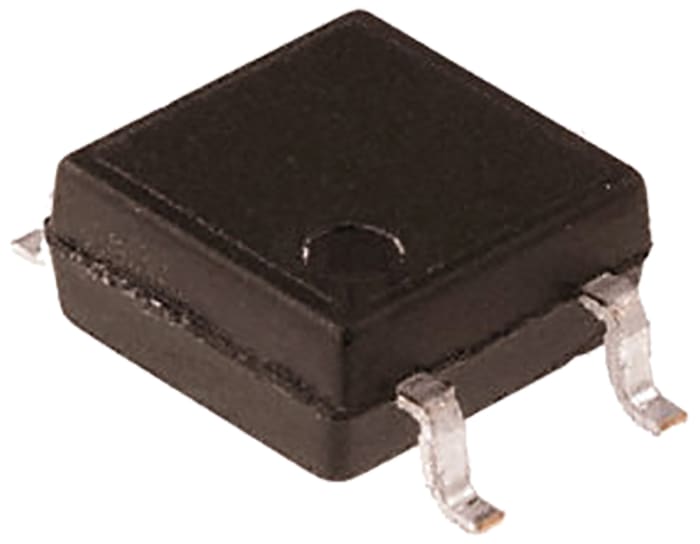

TLP185GB-TP The Toshiba TLP185GB-TP is a DC input optocoupler with a transistor output. It features a surface mount 4-pin SO package and provides 3750Vrms isolation.
Mfr Part #:

TLP185GB-TP

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TLP185GB-TP is a DC input optocoupler with a transistor output. It features a surface mount 4-pin SO package and provides 3750Vrms isolation.
✓ Total Stock: 452,000 pcs
$ Price Range: $0.33

TLP185GB-TP Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
452,000 pcs
On Request
452000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP185GB-TP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Failure Rate
Mounting Type
Number of Channels
Number of Pins
SVHC Present
Tape & Reel
View Similar Products (0)

TLP185GB-TP Description

Short technical summary and product information.

The Toshiba TLP185GB-TP is a single-channel DC input optocoupler from the TL185 series, designed for transistor output applications. It comes in a compact 4-pin SO surface-mount package, making it suitable for space-constrained designs.



This optocoupler offers a maximum forward voltage of 1.4V and an isolation voltage of 3750Vrms, ensuring reliable signal isolation. It operates within a wide temperature range of -55°C to 110°C. The device has a maximum input current of 50mA and features typical rise and fall times of 2μs and 3μs, respectively.



With a minimum current transfer ratio of 100% and a maximum of 6%, the TLP185GB-TP is designed for various electronic isolation tasks. It is approved by UL and CSA standards. The component originates from Japan and is suitable for applications requiring robust electrical isolation and signal integrity.

TLP185GB-TP Quick Information

Product Type: Optocoupler
Series: TL185
Canonical Name: Toshiba TLP185(GB-TPR,SE(T DC Input Optocoupler, Surface, 4-Pin SO
Subcategory: Optoisolators - Transistor, Photovoltaic Output

TLP185GB-TP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLP185GB-TP Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP185GB-TP Features

  • DC input optocoupler with transistor output.
  • Surface mount 4-pin SO package.
  • 3750Vrms isolation voltage.
  • Wide operating temperature range: -55°C to 110°C.
  • UL and CSA approved.

TLP185GB-TP Applications

  • Ideal for signal isolation circuits.
  • Suitable for power supply control.
  • Used in industrial automation systems.
  • Applicable in telecommunication equipment.

TLP185GB-TP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum forward voltage for the TLP185GB-TP?

The maximum forward voltage is 1.4V.

How many channels does the TLP185GB-TP have?

The TLP185GB-TP has 1 channel.

What is the isolation voltage of the TLP185GB-TP?

The isolation voltage is 3750Vrms.

What is the operating temperature range for this optocoupler?

The operating temperature range is from -55°C to 110°C.

What package type is the TLP185GB-TP supplied in?

It is supplied in a 4-pin SO surface-mount package.

What are the typical rise and fall times for the TLP185GB-TP?

The typical rise time is 2μs and the typical fall time is 3μs.

What standards does the TLP185GB-TP comply with?

It is approved by UL and CSA standards.
