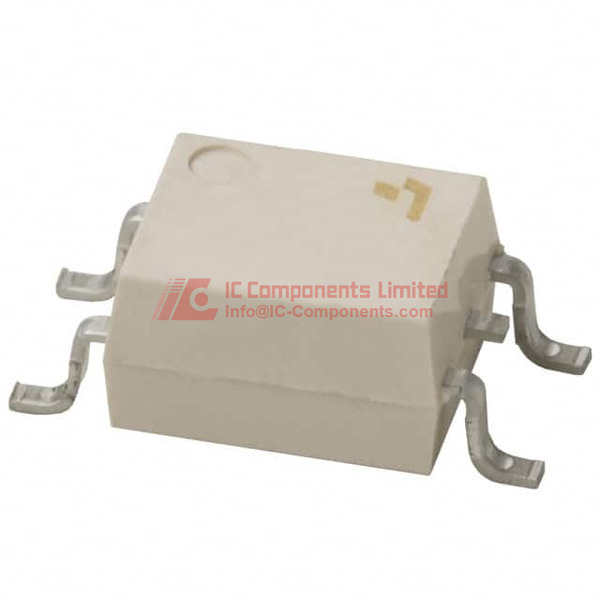

TLP160J(TPL,U,C,F) The Toshiba TLP160J(U,C,F) is a Triac output optocoupler designed for isolation applications. It features 2500Vrms isolation and a 600V off-state voltage.
Mfr Part #:

TLP160J(TPL,U,C,F)

Available from 1 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba TLP160J(U,C,F) is a Triac output optocoupler designed for isolation applications. It features 2500Vrms isolation and a 600V off-state voltage.
✓ Total Stock: 21,131 pcs
$ Price Range: $7.60

TLP160J(TPL,U,C,F) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
21,131 pcs
On Request
21131 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP160J(TPL,U,C,F) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Number of Channels
Operating Temperature
Storage Temperature
Supplier Device Package
Tape & Reel
Turn On Time
Zero Crossing Circuit
View Similar Products (0)

TLP160J(TPL,U,C,F) Description

Short technical summary and product information.

The Toshiba TLP160J(U,C,F) is an optocoupler featuring a Triac output, suitable for applications requiring electrical isolation. It provides 2500Vrms of isolation voltage and can withstand up to 600V in the off-state.



Key electrical characteristics include a typical forward voltage of 1.15V and a maximum LED trigger current of 10mA. The device has a maximum on-state current of 70mA and a hold current of 1mA. It operates within a temperature range of -40°C to 100°C.



This optocoupler is housed in a 6-SOIC package with a surface mount type. The supplier device package is specified as 6-MFSOP, 4 Lead. It is supplied in tube packaging.



The TLP160J(U,C,F) is RoHS compliant, indicating adherence to environmental standards for hazardous substances.

TLP160J(TPL,U,C,F) Quick Information

Product Type: Optocoupler
Canonical Name: TLP160J(U,C,F) Optocoupler
Subcategory: Optocouplers - Triac, SCR Output

TLP160J(TPL,U,C,F) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

TLP160J(TPL,U,C,F) Estimated Pricing

Qty Low High
1+ $7.60 $7.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP160J(TPL,U,C,F) Features

  • Provides 2500Vrms of isolation voltage.
  • Withstands 600V in the off-state.
  • Features a Triac output for control.
  • Surface mount 6-SOIC package.
  • Operates from -40°C to 100°C.

TLP160J(TPL,U,C,F) Applications

  • Used for electrical isolation.
  • Suitable for AC power control.
  • Integrates control and isolation.
  • Ideal for solid-state relays.

TLP160J(TPL,U,C,F) FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the TLP160J(U,C,F) optocoupler?

The TLP160J(U,C,F) optocoupler provides 2500Vrms of isolation voltage.

What is the maximum off-state voltage for the TLP160J(U,C,F)?

The maximum off-state voltage for the TLP160J(U,C,F) is 600V.

What is the operating temperature range for this optocoupler?

The TLP160J(U,C,F) optocoupler operates in a temperature range of -40°C to 100°C.

What type of package is the TLP160J(U,C,F) supplied in?

The TLP160J(U,C,F) is supplied in a 6-SOIC (0.173", 4.40mm Width), 4 Leads package, typically in tube packaging.

Is the TLP160J(U,C,F) RoHS compliant?

Yes, the TLP160J(U,C,F) is RoHS compliant.
