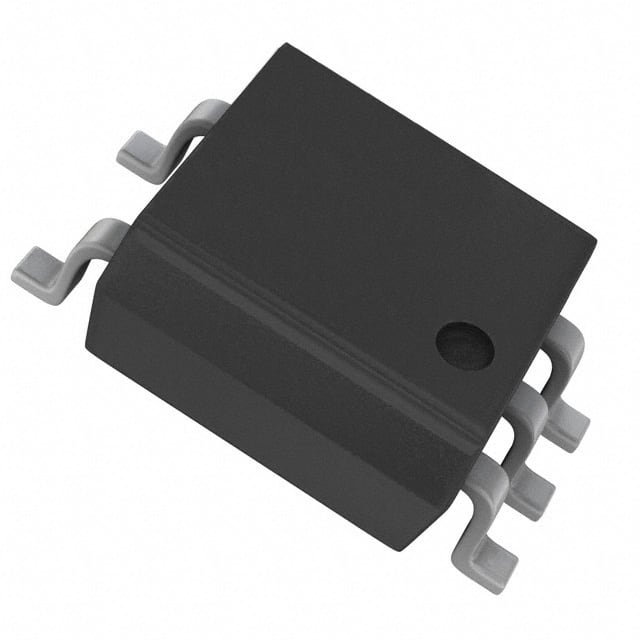

TLP131 The Toshiba Semiconductor and Storage TLP131(GB-TPR,F) is an optoisolator with transistor base output. It offers 3750Vrms isolation and operates over a wide temperature range.
Mfr Part #:

TLP131

Available from 3 distributors
Mfr Name: Toshiba
Toshiba
The Toshiba Semiconductor and Storage TLP131(GB-TPR,F) is an optoisolator with transistor base output. It offers 3750Vrms isolation and operates over a wide temperature range.
✓ Total Stock: 141,826 pcs
$ Price Range: $0.33

TLP131 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
113,000 pcs
On Request
113000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
18,413 pcs
On Request
18413 pcs On Request 1 On Request On Request 1644+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,413 pcs
On Request
10413 pcs On Request 1 On Request On Request 1446 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLP131 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Type
Mounting Type
Operating Temperature
Output Type
Supplier Device Package
View Similar Products (0)

TLP131 Description

Short technical summary and product information.

The Toshiba Semiconductor and Storage TLP131(GB-TPR,F) is a transistor output optoisolator designed for isolation applications. It provides a high isolation voltage of 3750Vrms and features a current transfer ratio (CTR) ranging from 100% at 5mA to 600% at 5mA.



This optocoupler has a DC input type and a transistor with base output. Key electrical specifications include a maximum output voltage of 80V, a typical forward voltage of 1.15V, and a maximum forward current of 50mA. The saturation voltage (Vce) is a maximum of 400mV. Switching times are typically 3µs for turn on/off and 2µs/3µs for rise/fall times.



The device is suitable for a wide operating temperature range of -55°C to 100°C. It is available in a surface mount package, specifically a 6-MFSOP, 5-lead configuration, also described as 6-SOIC (0.173, 4.40mm Width), 5 Leads. The package is supplied in Cut Tape (CT) format.

TLP131 Quick Information

Product Type: Optoisolator
Series: TLP
Canonical Name: Toshiba TLP131(GB-TPR,F) Optoisolator
Subcategory: Optoisolator - Transistor, Photovoltaic Output

TLP131 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLP131 Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLP131 Features

  • High isolation voltage of 3750Vrms.
  • Wide current transfer ratio (100%-600%).
  • Fast switching times, typically 3µs.
  • Wide operating temperature range: -55°C to 100°C.
  • Surface mountable 6-MFSOP package.

TLP131 Applications

  • Used for signal isolation.
  • Suitable for power supply circuits.
  • Applicable in communication systems.
  • Ideal for control interfaces.

TLP131 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of TLP131?

3750 Vrms.

What is the current transfer ratio range?

100% to 600% at 5mA.

What is the output voltage rating?

Maximum 80V.

What is the operating temperature range?

-55°C to 100°C.

What is the package type?

6-SOIC (0.173, 4.40mm Width), 5 Leads.

What is the mounting type?

Surface Mount.

What is the switching speed?

Typical turn on/off time 3 µs, rise/fall times 2/3 µs.
