| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,454 pcs
|
6454 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
465 pcs
|
465 pcs | On Request | 1 | On Request | On Request | 20/ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Duplex | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Supplier Device Package | |
| Technology | |
| Type | |
| Voltage |
The TLK6002ZEU from Texas Instruments is a versatile dual-channel transceiver designed for high-speed data transmission. It supports continuous and multi-rate operation from 470 Mbps up to 6.25 Gbps, making it suitable for demanding applications.
This transceiver is engineered to support critical protocols such as CPRI and OBSAI, along with Gigabit Ethernet. It features an integrated latency measurement function with an accuracy of ±814 ps and supports SERDES operation with 8B/10B data modes. The device includes a 20-bit HSTL single-ended parallel data interface with integrated source and end termination.
Key electrical characteristics include configurable transmit and receive FIFOs, loopback capability on both serial and parallel sides, and support for serial retime operation. It offers dual power supplies with a 1.0V core and 1.5V/1.8V I/O. The device also incorporates three-tap transmit de-emphasis and adaptive receive equalization to enhance backplane reach.

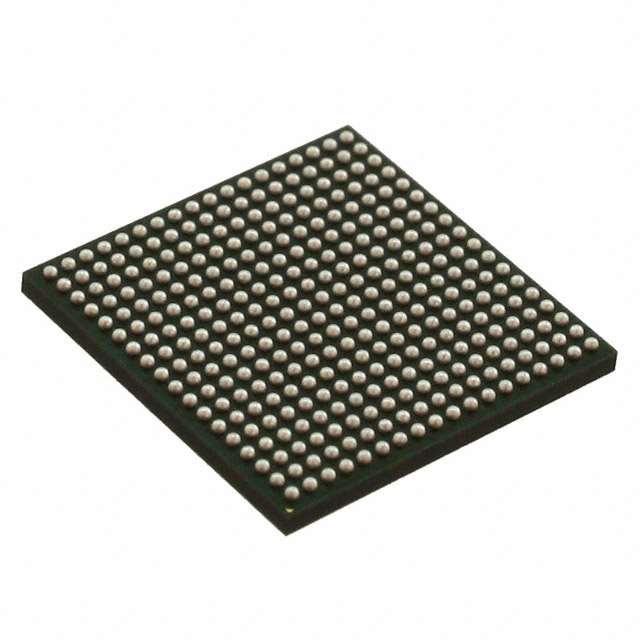

Packaged in a 324-BGA (19x19 mm) format, the TLK6002ZEU is designed for surface mount applications. It operates within an industrial ambient temperature range of -40°C to 85°C, ensuring reliability in various environments. The device also features hot plug protection and standard test interfaces like JTAG and MDIO.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.30 | $21.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLK6002ZEU operates in an industrial ambient temperature range of -40°C to 85°C.
The TLK6002ZEU is available in a 324-BGA (19x19 mm) package.
The TLK6002ZEU supports continuous and multi-rate operation from 470 Mbps to 6.25 Gbps.
The TLK6002ZEU supports CPRI, OBSAI, Gigabit Ethernet, and Telecom SerDes protocols.
The TLK6002ZEU requires a 1.0V core supply and a 1.5V/1.8V I/O supply.
