TLK4120IZPV

The TLK4120IZPV from Texas Instruments is a four-channel, multi-gigabit transceiver designed for high-speed bidirectional point-to-point data transmission. It supports an effective serial interface speed of 0.5 Gbps to 1.3 Gbps per channel, providing up to 1.17 Gbps of data bandwidth per channel.

This transceiver is ideal for high-speed backplane interconnects and point-to-point data links. It can interface with backplanes, copper cables, or optical converters. The device features independent channel operation, selectable signal preemphasis for the serial output, and an on-chip PLL for clock synthesis from a low-speed reference. It also includes hot plug protection and lock indication for fast initialization.

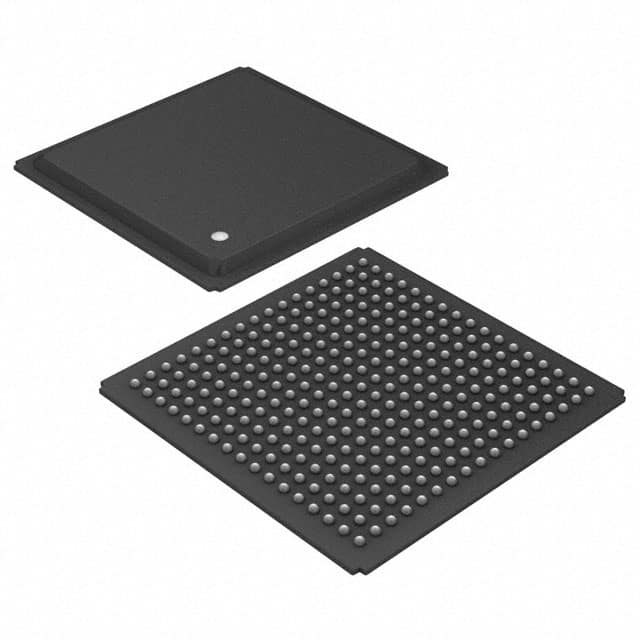

The TLK4120IZPV operates from a 2.3V to 2.7V power supply, enabling low-power operation with a typical power consumption of 1150 mW at 1.3 Gbps. It is housed in a compact 289-ball PBGA package measuring 19 mm x 19 mm and is rated for an industrial temperature range of -40°C to 85°C.

This device can also serve as a replacement for parallel data transmission architectures, reducing the number of traces and connector pins required. It performs parallel-to-serial, serial-to-parallel conversion, and clock extraction functions for a physical layer interface.
