TLK3118GDV

The TLK3118GDV from Texas Instruments is a flexible, redundant XAUI serial transceiver compliant with the 10-Gbps Ethernet XAUI specification. This device provides high-speed bi-directional point-to-point data transmissions with up to 12.5 Gbps of raw data transmission capacity.

Key features include a redundant quad 3.2-Gbps transceiver capability, configurable as a 10-Gbps Attachment Unit Interface (XAUI) transceiver. It supports IEEE P802.3ae-2002 10 Gbps Ethernet XGXS (XGMII Extender Sublayer) compliance. The transceiver offers fast switching for redundancy and supports transmit pre-emphasis and receive adaptive equalization for extended backplane reach.

Designed for applications requiring redundant 10Gbps connections, the TLK3118GDV is suitable for use in backplanes and front panel connections. It operates with a core voltage supply of 1.2-V and features HSTL Class 1 I/O with on-chip 50-ohm termination. The device supports jumbo packet operation up to 9600 bytes.

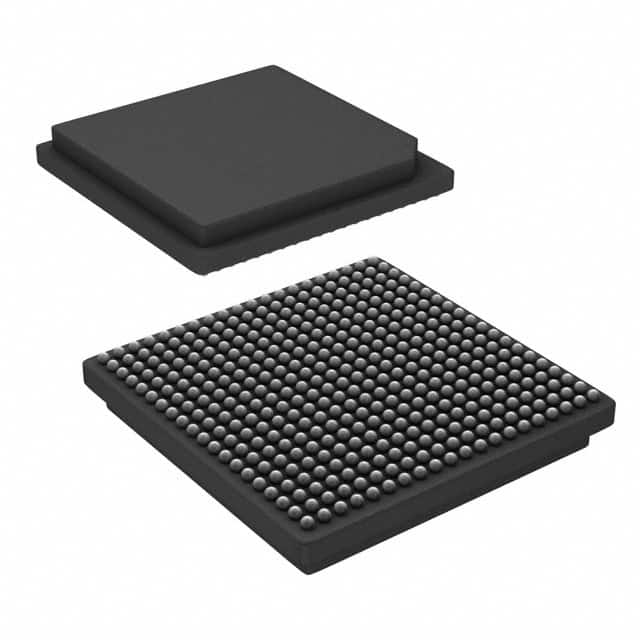

This transceiver is housed in a 400-ball, fine-pitch (1mm) PBGA package, measuring 21x21mm. It is designed for surface mount installation and operates within a temperature range of 0°C to 70°C.
