| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,053 pcs
|
12053 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Rate | |
| Duplex | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Operating Voltage | |
| Power Consumption | |
| Protocol | |
| Supplier Device Package | |
| Supply Voltage | |
| Type | |
| Voltage |
The TLK2201BRCP from Texas Instruments is an integrated circuit designed as a full-duplex Ethernet transceiver. It supports ultrahigh-speed point-to-point data transmissions, adhering to the timing requirements of the IEEE 802.3 Gigabit Ethernet specification.
This transceiver operates with data rates ranging from 1.0 to 1.6 Gigabits Per Second (Gbps). It features a low power consumption of less than 200 mW at 1.25 Gbps and is compatible with LVPECL differential I/O on its high-speed interface. The device requires a 2.5-V supply voltage for optimal power efficiency and includes 3.3-V tolerance on its LVTTL inputs.

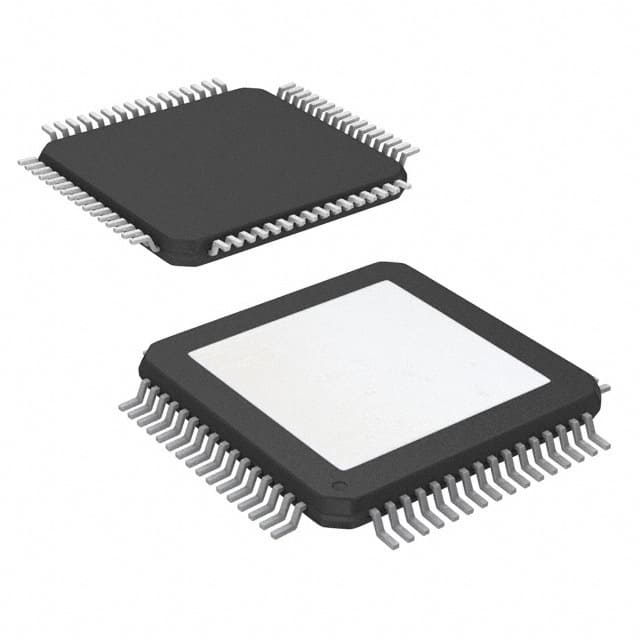

The TLK2201BRCP is housed in a 64-pin VQFP package with a thermally enhanced PowerPAD. It is designed for surface mount applications and operates within a temperature range of 0°C to 70°C. The transceiver includes a comprehensive suite of built-in testability features and IEEE 1149.1 JTAG support.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.08 | $7.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLK2201BRCP supports data rates from 1.0 to 1.6 Gigabits Per Second (Gbps).
The TLK2201BRCP operates at a supply voltage of 2.5V.
The TLK2201BRCP has an operating temperature range of 0°C to 70°C.
The TLK2201BRCP is supplied in a 64-pin VQFP package, specifically a 64-HVQFP (10x10) or 64-PowerVFQFP.
The TLK2201BRCP supports the IEEE 802.3 protocol.
