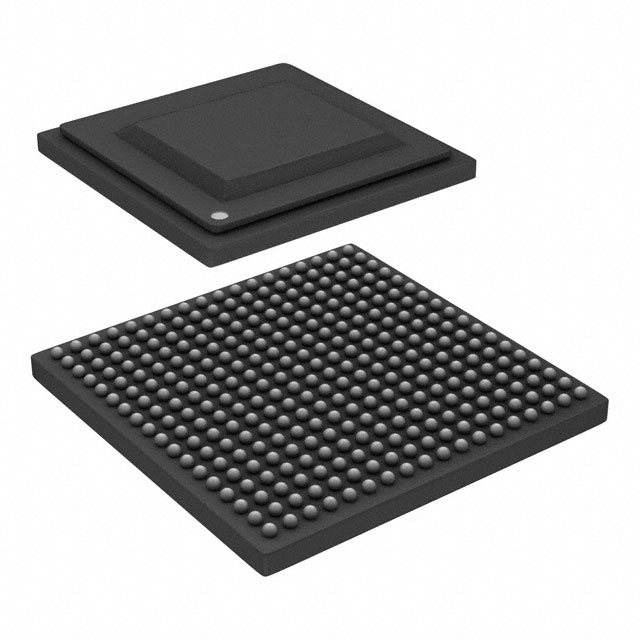

TLK10034AAJ The Texas Instruments TLK10034AAJ is a quad-channel transceiver supporting XAUI and 10GBASE-KR Ethernet standards. It operates at data rates up to 10Gbps and is housed in a 324-FCBGA package.
Mfr Part #:

TLK10034AAJ

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLK10034AAJ is a quad-channel transceiver supporting XAUI and 10GBASE-KR Ethernet standards. It operates at data rates up to 10Gbps and is housed in a 324-FCBGA package.
✓ Total Stock: 2,008 pcs
$ Price Range: $42.08

TLK10034AAJ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,008 pcs
On Request
2008 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLK10034AAJ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Power Consumption
Protocol
Supplier Device Package
Technology
Type
View Similar Products (0)

TLK10034AAJ Description

Short technical summary and product information.

The TLK10034AAJ from Texas Instruments is a versatile quad-channel transceiver designed for high-speed communication interfaces. It supports critical standards such as 10GBASE-KR, XAUI, and 1GBASE-KX Ethernet, along with CPRI and OBSAI data rates up to 10 Gbps.



This transceiver features multi-rate SERDES operation with data rates up to 10.3125 Gbps on the high-speed side and up to 5 Gbps on the low-speed side. It utilizes differential CML I/Os and is suitable for interfacing with backplanes, copper cables, or SFP+ optical modules. The device operates within an industrial ambient temperature range of -40°C to 85°C.



Key features include selectable reference clocks per channel, loopback capability, data retime operation, and comprehensive pattern generation and verification for testing. It requires two power supplies: 1.0-V, and 1.5 or 1.8-V nominal, with no specific power supply sequencing requirements. The TLK10034AAJ is manufactured using 65nm Advanced CMOS technology and comes in a 324-pin FCBGA package measuring 19mm x 19mm.

TLK10034AAJ Quick Information

Product Type: Transceiver
Canonical Name: TLK10034AAJ Quad-Channel XAUI/10GBASE-KR Transceiver
Subcategory: Interface Transceiver

TLK10034AAJ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLK10034AAJ Estimated Pricing

Qty Low High
1+ $42.08 $42.08

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLK10034AAJ Features

  • Quad-channel XAUI/10GBASE-KR transceiver.
  • Supports data rates up to 10 Gbps.
  • Operates from -40°C to 85°C.
  • 324-FCBGA package for surface mounting.
  • Multi-rate SERDES operation up to 10.3125 Gbps.

TLK10034AAJ Applications

  • Ideal for high-speed networking.
  • Suitable for telecom infrastructure.
  • Used in data center interconnects.
  • Supports optical module interfaces.

TLK10034AAJ FAQs

5 frequently asked questions generated from this part’s specifications.
What are the supported Ethernet standards for the TLK10034AAJ?

The TLK10034AAJ supports 10GBASE-KR, XAUI, and 1GBASE-KX Ethernet standards.

What is the operating temperature range of the TLK10034AAJ transceiver?

The operating temperature range for the TLK10034AAJ is -40°C to 85°C.

What package type is the TLK10034AAJ available in?

The TLK10034AAJ is available in a 324-FCBGA package.

What is the maximum data rate supported by the TLK10034AAJ?

The TLK10034AAJ supports data rates up to 10 Gbps.

What are the high-speed and low-speed data rates for SERDES operation?

The high-speed side supports data rates up to 10.3125 Gbps, and the low-speed side supports up to 5 Gbps.
