TLK10031CTR The Texas Instruments TLK10031CTR is a single-channel transceiver supporting data rates up to 10 Gbps. It is designed for high-speed interface applications and operates within an industrial temperature range.
Mfr Part #:

TLK10031CTR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TLK10031CTR is a single-channel transceiver supporting data rates up to 10 Gbps. It is designed for high-speed interface applications and operates within an industrial temperature range.
✓ Total Stock: 2,687 pcs
$ Price Range: $17.37

TLK10031CTR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
687 pcs
On Request
687 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLK10031CTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Lead Spacing
Mounting Type
Number of Drivers
Operating Temperature
Power Consumption
Supplier Device Package
Technology
Type
Voltage
View Similar Products (0)

TLK10031CTR Description

Short technical summary and product information.

The TLK10031CTR from Texas Instruments is a single-channel transceiver designed for high-speed communication interfaces. It supports multiple Ethernet standards including 10GBASE-KR and 1GBASE-KX, as well as CPRI and OBSAI protocols, with data rates up to 10 Gbps on the high-speed side and up to 5 Gbps on the low-speed side.



This transceiver features differential CML I/Os and supports multi-rate SERDES operation. It is suitable for interfacing with backplanes, passive and active copper cables, or SFP+ optical modules. The device operates over an industrial ambient temperature range of -40°C to 85°C.

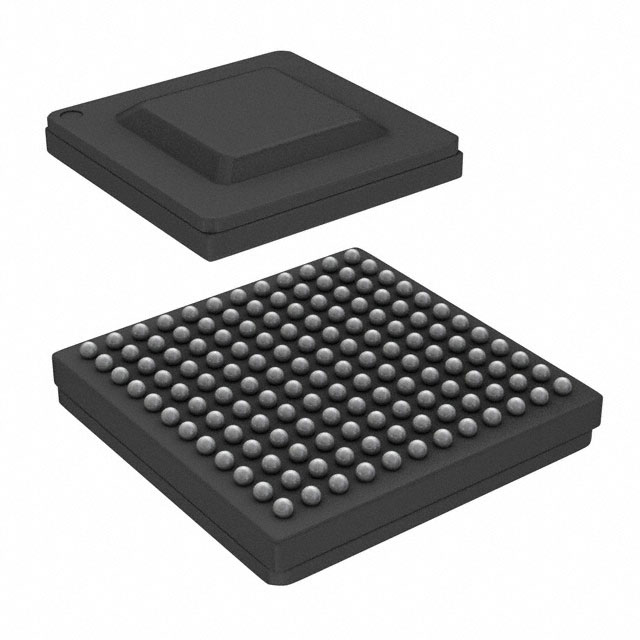

Packaged in a 144-FCBGA (13mm x 13mm) with surface mount, the TLK10031CTR utilizes a 65nm Advanced CMOS technology. It requires two power supplies: 1 V for the core and 1.5 or 1.8 V for the I/O, with no specific power supply sequencing requirements. The transceiver includes features like transmit de-emphasis and receive adaptive equalization to extend reach over backplanes and cables, along with Loss of Signal (LOS) detection.

TLK10031CTR Quick Information

Product Type: Transceiver
Canonical Name: TLK10031CTR Single-Channel XAUI/10GBASE-KR Transceiver
Subcategory: Interface

TLK10031CTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLK10031CTR Estimated Pricing

Qty Low High
1+ $17.37 $17.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLK10031CTR Features

  • Single-channel XAUI/10GBASE-KR transceiver.
  • Supports data rates up to 10 Gbps.
  • Operates from -40°C to 85°C.
  • 144-FCBGA surface mount package.
  • Multi-rate SERDES operation supported.

TLK10031CTR Applications

  • Ideal for high-speed backplane interfaces.
  • Suitable for active copper cable applications.
  • Used with SFP+ optical modules.
  • Supports CPRI and OBSAI data rates.

TLK10031CTR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the TLK10031CTR?

The operating temperature range is -40°C to 85°C.

What package type is the TLK10031CTR?

The TLK10031CTR is available in a 144-FCBGA (13x13) package and a 144-BBGA, FCBGA package.

What are the supported data rates for the TLK10031CTR?

The TLK10031CTR supports data rates up to 10 Gbps on the high-speed side and up to 5 Gbps on the low-speed side.

What Ethernet standards does the TLK10031CTR support?

The TLK10031CTR supports 10GBASE-KR, XAUI, and 1GBASE-KX Ethernet standards.

What is the operating voltage for the TLK10031CTR?

The operating voltage is between 1.71V and 1.89V.
