| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,098 pcs
|
6098 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
2,228 pcs
|
2228 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
1,321 pcs
|
1321 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Sensitivity | |
| Supply Current | |
| Supply Voltage |
The Infineon TLI4961-1M is a bipolar Hall effect latch suitable for industrial and consumer applications requiring high precision. It features a wide operating supply voltage range from 3.0 V to 32 V, with overvoltage capability up to 42 V without an external resistor.
Key electrical characteristics include a supply current of 1.6 mA and magnetic thresholds typically ±2 mT. The output interface is an open drain type. The device is designed to operate reliably within a temperature range of -40°C to 125°C, with low jitter of typically 0.35 μs.

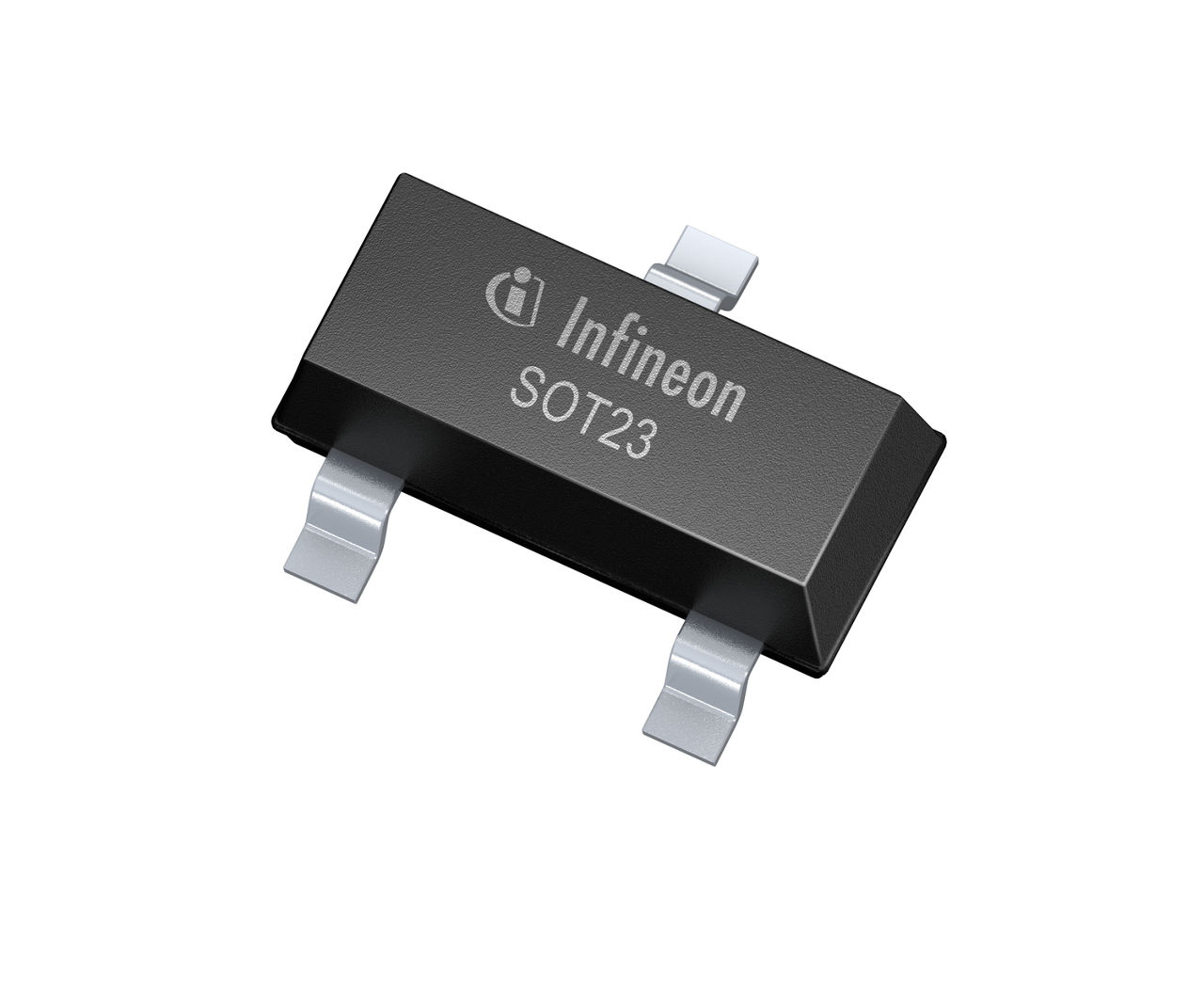

This Hall effect latch is available in a small, halogen-free SMD package, PG-SOT23-3-15. Its features make it well-suited for applications such as index counting with pole wheels and rotor position detection in brushless DC motor commutation.
3.0V to 32V.
PG-SOT23-3-15 surface mount package.
-40°C to 125°C.
Typical BOP is 2 mT and BRP is -2 mT.
Open drain output.
Yes, it can withstand up to 42V without an external resistor.
1.6 mA.
