| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
458 pcs
|
458 pcs | On Request | 1 | On Request | On Request | 43922 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Function | |
| Halogen Free | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Polarization | |
| Power Consumption | |
| Resolution | |
| Sensing Range | |
| Sensitivity | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Test Condition | |
| Voltage |
The Infineon Technologies TLI493DW2BWA0XTSA1 is a versatile 3D Hall effect sensor designed for magnetic flux density sensing. It provides 3D (X, Y, Z) magnetic flux density sensing up to ±160 mT with programmable sensitivity.
This sensor features a low power consumption in its power-down mode, consuming only 7 nA typically. It offers 12-bit data resolution for each measurement direction and includes a 10-bit temperature sensor. The device operates within a supply voltage range of 2.8 V to 3.5 V and has an operating temperature range of -40°C to 125°C.

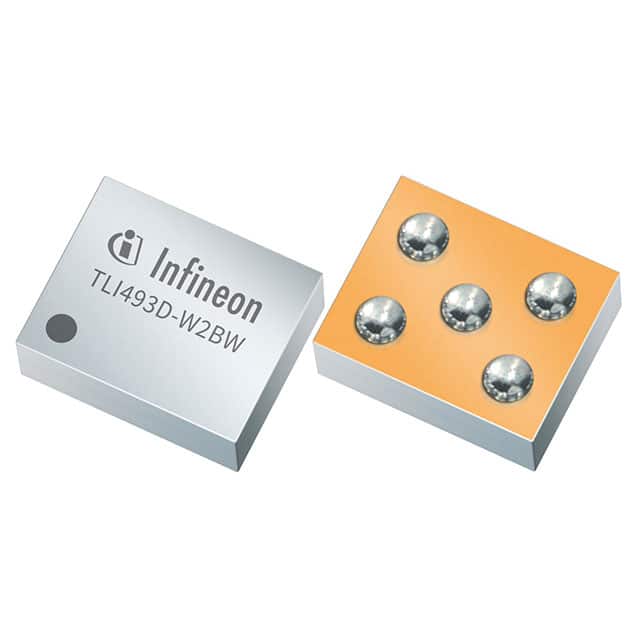

Designed for surface mount applications, the TLI493DW2BWA0XTSA1 comes in a compact 5-WLCSP package with dimensions of approximately 1.13 mm x 0.93 mm x 0.59 mm. Its I2C interface allows for triggering by an external microcontroller and provides an interrupt signal for valid measurements. This sensor is suitable for various applications including multi-function knobs, joysticks, robotics position sensing, and mobile camera lens position sensing.
The TLI493D-W2BW is qualified for industrial applications according to JEDEC JESD47. It is also Pb-free and halogen-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TLI493DW2BWA0XTSA1 has a sensing range of ±160mT.
The TLI493DW2BWA0XTSA1 operates from a supply voltage of 2.8V to 3.5V.
The operating temperature range for the TLI493DW2BWA0XTSA1 is -40°C to 125°C.
The TLI493DW2BWA0XTSA1 is supplied in a 5-UFBGA, WLCSP package.
The TLI493DW2BWA0XTSA1 has 12-bit data resolution for each measurement direction and a 10-bit temperature sensor.
In power-down mode, the TLI493DW2BWA0XTSA1 consumes a typical power of 7 nA.
