| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
479 pcs
|
479 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Chemistry | |
| Capacity | |
| Industrial Grade | |
| Lead Style | |
| Operating Temperature Range | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

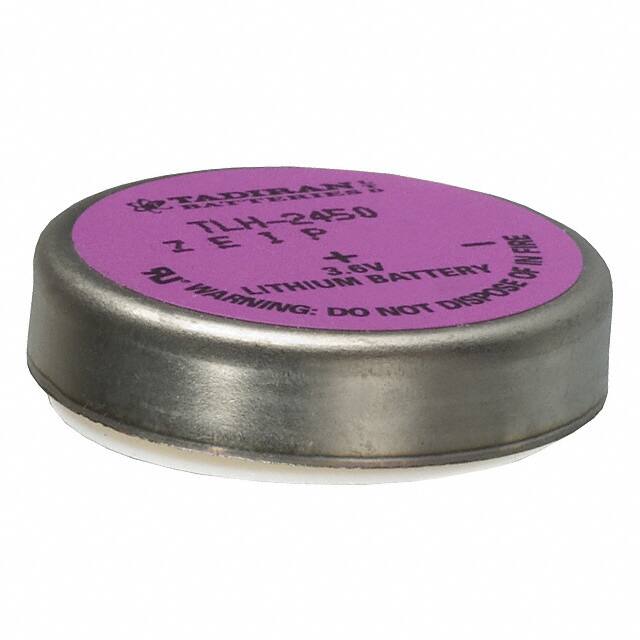

The Tadiran Batteries TLH-2450/P is a primary lithium-thionyl chloride (Li-SOCl2) wafer cell battery with a nominal voltage of 3.6V and a nominal capacity of 0.55Ah (tested at 0.5mA discharge to 2V). It is designed for applications requiring high energy density and long shelf life, with a low self-discharge rate. The battery features a hermetic glass-to-metal seal and non-flammable electrolyte, ensuring reliability in harsh environments.
The TLH-2450/P has a maximum recommended continuous current of 5mA and a maximum pulse current capability of 10mA. It operates over a wide temperature range of -55°C to +125°C, with a maximum duration of 3 hours at +150°C. The battery weighs 8.8g and has a volume of 2.60cc.
The cell size is a wafer format with a diameter of 24.5mm and height of 5.8mm. Termination style is PC pin (tin plated nickel). This battery is suitable for applications such as tire pressure monitoring systems (TPMS), as noted in the datasheet, and other low-power devices requiring a compact, high-energy primary power source.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.72 | $6.72 |
| 40+ | $4.91 | $4.91 |
| 80+ | $4.63 | $4.63 |
| 120+ | $4.48 | $4.48 |
| 280+ | $4.17 | $4.17 |
| 520+ | $3.96 | $3.96 |
| 1,000+ | $3.75 | $3.75 |
| 2,520+ | $3.59 | $3.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.6V
0.55Ah
-55°C to +125°C
Lithium Thionyl Chloride (Li-SOCl2)
PC Pin (Tin Plated Nickel)
RoHS3 Compliant (unverified)
5mA
