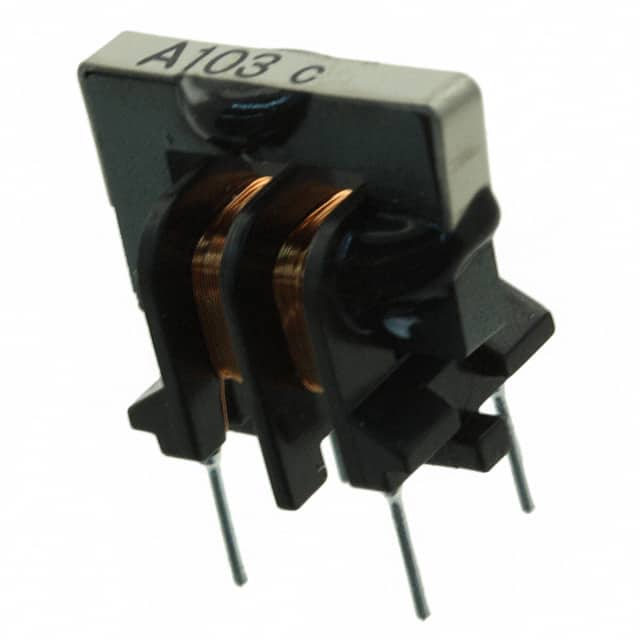

The Taiyo Yuden TLF9UA103WR23K1 is a common mode choke coil designed for AC lines, serving as a preventive measure against noise terminal voltage and power supply noise. It offers a common mode inductance of 10 mH with a tolerance of +100/-10% and a maximum DC resistance of 4.5 Ω.
This component is rated for a maximum current of 0.23A and a maximum voltage of AC250V. The operating temperature range is from -25°C to +105°C, including self-generated heat. The insulation resistance is a minimum of 100 MΩ.
The choke coil has a case size of 11.0x17.0 mm, with dimensions A max 11.0 mm, B max 17.0 mm, and C max 16.0 mm. It features through-hole mounting and a vertical, 4 PC pin package. The standard quantity for bulk packaging is 500 pieces.
Applications include SW power supplies in TVs, NC machines, computer systems, peripheral units, measuring instruments, and controllers. It is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum rated voltage is 250 V.
Through hole mounting with a vertical, 4 PC pin package.
-25°C to 105°C.
10 mH at 1 kHz.
230 mA maximum.
Maximum 4.5 Ω.
Minimum 100 MΩ.
