TLE9877QXW40 The Infineon TLE9877QXW40 is a microcontroller featuring an Arm Cortex-M3 core, 64KB of flash memory, and 6KB of RAM. It operates within an extended temperature range.
Mfr Part #:

TLE9877QXW40

Available from 1 distributors
Mfr Name: Infineon
Infineon
The Infineon TLE9877QXW40 is a microcontroller featuring an Arm Cortex-M3 core, 64KB of flash memory, and 6KB of RAM. It operates within an extended temperature range.
✓ Total Stock: 1,530 pcs

TLE9877QXW40 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,530 pcs
On Request
1530 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE9877QXW40 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Processor
Interface
Lead Style
Mounting Type
Operating Temperature
Operating Voltage
Package / Case
SVHC Present
View Similar Products (0)

TLE9877QXW40 Description

Short technical summary and product information.

The Infineon TLE9877QXW40 is part of the MOTIX™ family, designed for automotive applications. It integrates a 32-bit Arm Cortex-M3 microcontroller core with a LIN 2.2 transceiver and a BLDC MOSFET driver.



Key electrical specifications include 64 KB of flash memory and 6 KB of RAM. The device supports a single power supply ranging from 5.5 V to 28 V. It also features a high-speed operational amplifier for motor current sensing via shunt.



This microcontroller is built for demanding environments, offering an extended operating temperature range from -40°C to +175°C. It is qualified for automotive applications according to AEC-Q100/101 standards.

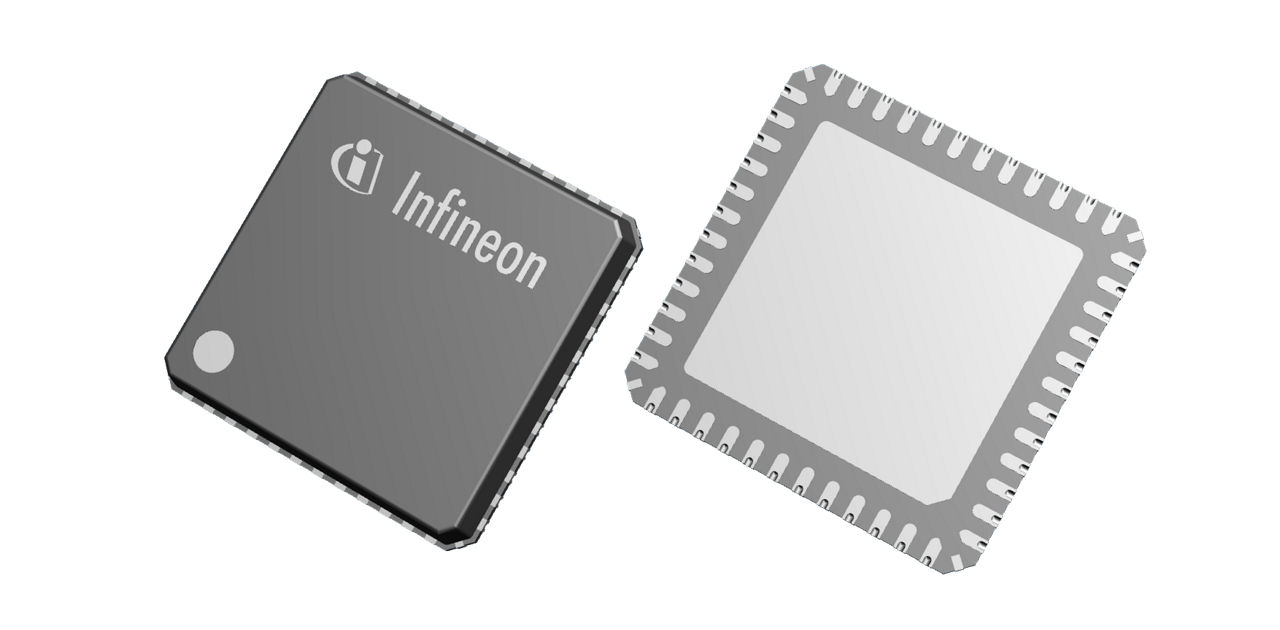

The TLE9877QXW40 is available in a VQFN-48 package, suitable for surface mount applications. Potential applications include automotive systems such as wipers, auxiliary pumps, fans, window lifts, sunroofs, and tailgates.

TLE9877QXW40 Quick Information

Product Type: Microcontroller
Series: TLE9877
Canonical Name: Infineon MOTIX™ TLE9877QXW40 Microcontroller
Subcategory: Motor Control SoCs/SIPs

TLE9877QXW40 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE9877QXW40 Features

  • 32-bit Arm Cortex-M3 microcontroller core.
  • 64 KB flash and 6 KB RAM.
  • Wide operating voltage from 5.5 V to 28 V.
  • Extended temperature range of -40°C to +175°C.
  • Includes LIN 2.2 transceiver and MOSFET driver.

TLE9877QXW40 Applications

  • Suitable for automotive wipers.
  • Used in auxiliary pump control.
  • Ideal for fan motor drivers.
  • Applicable for window lift systems.
  • Designed for tailgate control.

TLE9877QXW40 FAQs

7 frequently asked questions generated from this part’s specifications.
What processor core does the TLE9877QXW40 use?

ARM Cortex-M3 32-bit core.

How much flash memory is on the TLE9877QXW40?

64KB flash memory.

How much RAM does the TLE9877QXW40 have?

6KB RAM.

What is the operating voltage range?

5.5V to 28V.

What is the operating temperature range?

-40°C to +175°C.

What communication interface is included?

LIN 2.2 transceiver.

What package is the TLE9877QXW40 available in?

VQFN-48.
