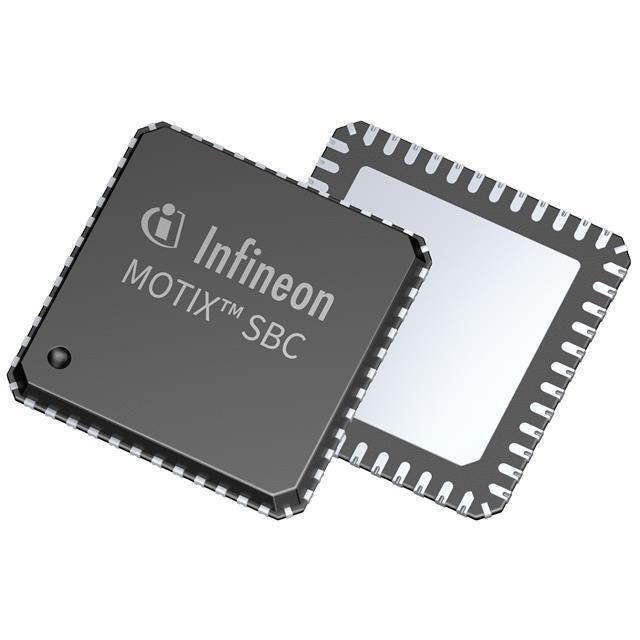

TLE95633QXXUMA1 The Infineon Technologies TLE95633QXXUMA1 is a BLDC Motor System IC designed for automotive applications. It integrates power supply, communication interfaces, and multiple half-bridges.
Mfr Part #:

TLE95633QXXUMA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE95633QXXUMA1 is a BLDC Motor System IC designed for automotive applications. It integrates power supply, communication interfaces, and multiple half-bridges.
✓ Total Stock: 3,000 pcs
$ Price Range: $2.25

TLE95633QXXUMA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE95633QXXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Automotive Grade
Current
Function
Interface
Motor Type
Mounting Type
Operating Temperature
Output Configuration
SVHC Present
Supplier Device Package
Technology
Voltage
View Similar Products (0)

TLE95633QXXUMA1 Description

Short technical summary and product information.

The TLE95633QXXUMA1 from Infineon Technologies is a multifunctional system IC for automotive motor control applications, specifically designed for Brushless DC (BLDC) motors. It features a 5V low-drop voltage regulator capable of 250mA, and three half-bridge gate drivers for external N-channel MOSFETs.



This IC supports high-speed CAN FD communication up to 5 Mbit/s according to ISO11898-2:2016, along with a 32-bit serial peripheral interface (SPI) for control. It includes adaptive MOSFET gate control for regulating switching times and reducing losses, and a current sense amplifier for protection and diagnosis.



Additional features include control of a reverse battery protection MOSFET, configurable wake-up sources, and high-side outputs. The device offers robust protection mechanisms such as overtemperature, short circuit protection, drain-source monitoring, and open-load detection. It operates within a voltage range of 6V to 28V and has an operating temperature range of -40°C to 150°C (TJ).



The TLE95633QXXUMA1 is supplied in a PG-VQFN-48-31 package, a 48-lead VFQFN with an exposed pad, suitable for surface mounting. It is qualified for automotive applications according to AEC-Q100 and is RoHS 3 compliant.

TLE95633QXXUMA1 Quick Information

Product Type: Motor Driver IC
Canonical Name: TLE95633-3QX BLDC Motor System IC
Subcategory: BLDC Motor System IC

TLE95633QXXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE95633QXXUMA1 Estimated Pricing

Qty Low High
1+ $2.25 $2.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE95633QXXUMA1 Features

  • Integrated 5V, 250mA low-drop voltage regulator.
  • Three half-bridge gate drivers for external MOSFETs.
  • High-speed CAN FD transceiver up to 5 Mbit/s.
  • SPI interface with cyclic redundancy check.
  • Overtemperature and short circuit protection features.

TLE95633QXXUMA1 Applications

  • Suitable for auxiliary pumps.
  • Used in blower motor applications.
  • Ideal for engine cooling fans.
  • Applicable for sunroof modules.
  • Designed for transfer case control.

TLE95633QXXUMA1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TLE95633QXXUMA1?

The operating voltage range is 6V to 28V.

What is the current output capability of the TLE95633QXXUMA1?

The device has a current capability of 250mA.

What is the operating temperature range for this motor driver IC?

The operating temperature range is -40°C to 150°C (TJ).

What type of motor does the TLE95633QXXUMA1 control?

It is designed for Brushless DC (BLDC) motors.

What communication interfaces are supported by the TLE95633QXXUMA1?

It supports CAN FD communication up to 5 Mbit/s and a 32-bit SPI interface.

What package type is the TLE95633QXXUMA1 supplied in?

It is supplied in a PG-VQFN-48-31 package, a 48-lead VFQFN with an exposed pad.
