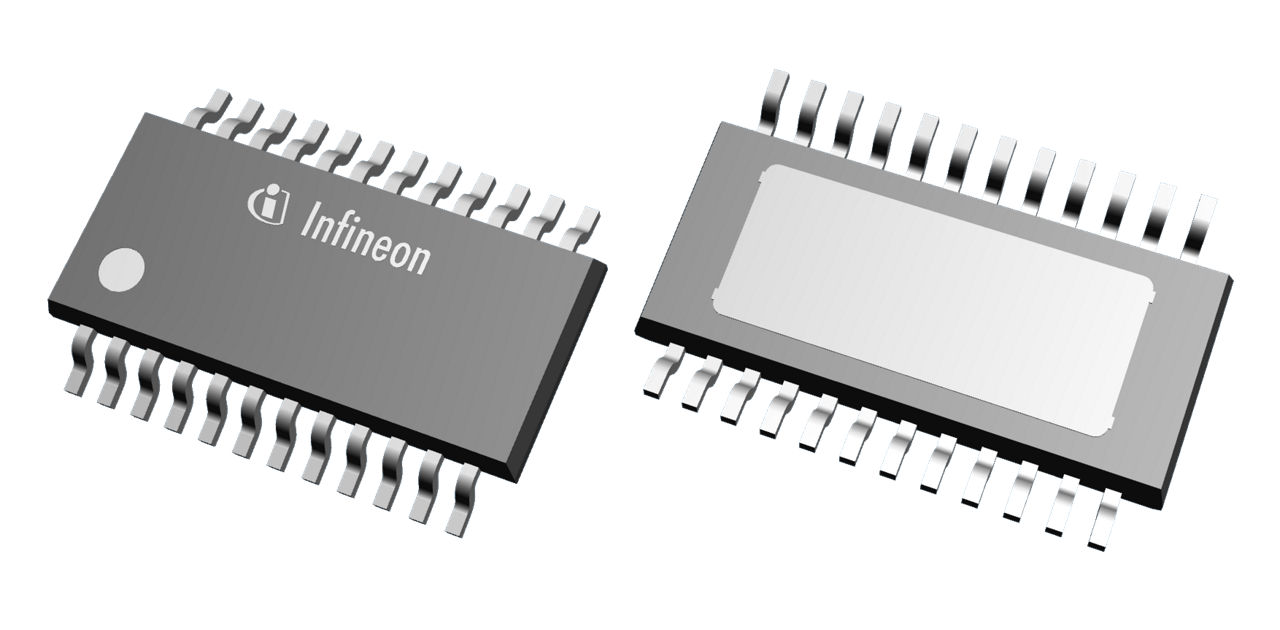

The Infineon TLE94110ES is a protected ten-fold half-bridge driver specifically engineered for automotive motion control applications, such as HVAC flap DC motor control. This device is part of a family offering half-bridge drivers with direct or SPI interfaces.
The TLE94110ES supports sequential or parallel operation for DC motor loads, controlled via a 16-bit SPI interface. It provides essential diagnosis features including short circuit, open load, power supply failure, and overtemperature detection. The driver offers a normal operating voltage range of 5.5 to 18V, with an extended range up to 20V, and a logic supply voltage range of 3.0 to 5.5V.
Key electrical characteristics include a maximum on-state path resistance of 1.8 + 1.8 Ohms at 150°C and a typical quiescent current of 0.1 µA at 85°C. The device supports PWM capable outputs at frequencies of 80Hz, 100Hz, and 200Hz with 8-bit duty cycle resolution. It is housed in a PG-TSDSO-24 package, designed for good thermal performance and reduced PCB space.
This driver is suitable for applications requiring precise motor control and robust protection features. Its low quiescent current makes it an attractive choice for various automotive systems.
The normal operating voltage range is 5.5 to 18 V, with an extended range of 18 to 20 V.
The device is packaged in PG-TSDSO-24, a surface-mount package.
It features 10 half-bridge power outputs.
PWM frequencies of 80 Hz, 100 Hz, and 200 Hz are supported.
The SPI interface is 16-bit standard SPI with daisy chain and in-frame response capability.
The maximum supply voltage for load dump protection is 40 V.
The typical quiescent current is 0.1 µA at 85°C.
