| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Fault Protection | |
| Features | |
| Interface | |
| Load Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Configuration | |
| Rds On (Typ) | |
| Supplier Device Package | |
| Voltage |
The TLE94108ESXUMA1 from Infineon Technologies is a protected eight-fold half-bridge driver specifically engineered for automotive motion control applications, such as HVAC flap DC motor control.
This device offers eight half-bridge power outputs with comprehensive protection features including overload, short circuit, and overtemperature detection. It operates with a normal supply voltage range of 5.5 to 18 V and features a 16-bit SPI interface for control and diagnosis. The outputs are PWM capable with 8-bit duty cycle resolution.
Designed for DC motor loads in sequential or parallel operation, the TLE94108ESXUMA1 supports forward, reverse, brake, and high impedance modes. Its low quiescent current and robust protection make it suitable for demanding automotive environments. The component is housed in a PG-TSDSO-24 package with an exposed pad for enhanced thermal performance.
Key specifications include a typical Rds On of 1.3 Ohm for both high-side and low-side paths, and a minimum overcurrent threshold of 0.9 A. The operating temperature range is -40°C to 150°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The normal operating voltage range is 5.5 to 18 V.

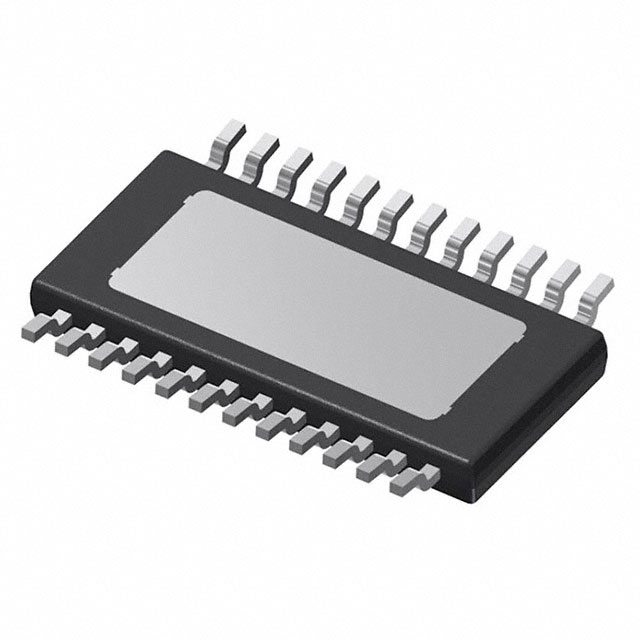

The TLE94108ESXUMA1 is supplied in a PG-TSDSO-24 package, which is a 24-TSSOP with an exposed pad.
The operating temperature range is -40°C to 150°C (TJ).
Yes, the TLE94108ESXUMA1 is RoHS3 Compliant.
The typical Rds On is 1.3 Ohm for both the low-side (LS) and high-side (HS) paths.
The TLE94108ESXUMA1 uses a Logic, PWM, and SPI interface.
