| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000,000 pcs
|
1000000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Package / Case | |
| Quiescent Current |

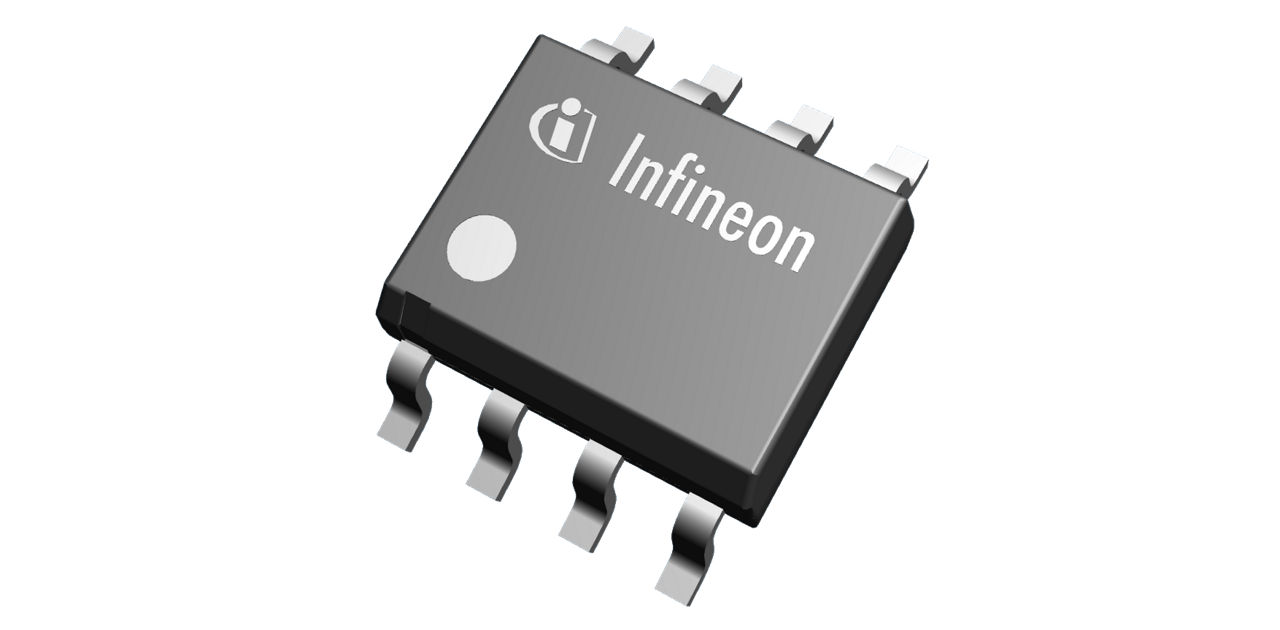

The Infineon Technologies TLE9351VSJ is a high-speed CAN FD transceiver suitable for automotive and industrial applications. It is fully compliant with ISO 11898-2:2016 and SAE J2284-4/-5 standards, supporting data frames up to 5 MBit/s with optimized loop delay symmetry.
This transceiver features a VIO input for voltage adaptation to 3.3 V or 5 V microcontroller interfaces. It offers a bus wake-up pattern function and a stand-by mode with minimized quiescent current, typically less than 10 µA. The device is protected against automotive transients according to ISO 7637 and SAE J2962-2, and boasts excellent ESD robustness, allowing use without additional protection devices in many automotive applications.
The TLE9351VSJ is available in a RoHS compliant, halogen-free PG-DSO-8 package, designed for surface mounting. Its design focuses on low electromagnetic emission and high RF immunity, meeting stringent EMC test limits without external components like common mode chokes.
The device supports CAN FD data frames up to 5 MBit/s.
The VIO input supports voltage adaptation for 3.3 V or 5 V microcontroller interfaces.
The typical quiescent current in stand-by mode is less than 10 µA.
The TLE9351VSJ is available in a PG-DSO-8 package.
Yes, the TLE9351VSJ is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
Yes, it is protected against automotive transients according to ISO 7637 and SAE J2962-2.
