| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Supplier Device Package | |
| Voltage |
The Infineon Technologies TLE9263BQXXUMA2 is a Mid-Range+ System Basis Chip (SBC) designed for automotive applications. It integrates two low-drop voltage regulators, providing a main regulator up to 250 mA and an auxiliary regulator up to 100 mA. The device also includes one high-speed CAN transceiver supporting CAN FD communication up to 5 Mbit/s and two LIN transceivers supporting LIN 2.2.
Key features include four high-side outputs with a typical 7Ω resistance, two High-Voltage GPIOs, and three High-Voltage wake inputs. Integrated fail-safe and supervision functions, such as a watchdog and reset outputs, enhance system reliability. Configuration and diagnostics are managed via a 16-bit SPI interface.
The TLE9263BQXXUMA2 is housed in a PG-VQFN-48-79 package and is suitable for surface mounting. Its operating temperature range is -40°C to 150°C (TJ), with an operating voltage range of 3V to 28V. This SBC is qualified for automotive applications according to AEC-Q100.
Potential applications include Body Control Modules (BMC), Passive keyless entry and start modules, Gateway applications, Heating, ventilation, and air conditioning (HVAC) systems, and various closure modules like seat, roof, tailgate, trailer, and door modules.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.87 | $3.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3V to 28V.
The operating junction temperature range is -40°C to 150°C.

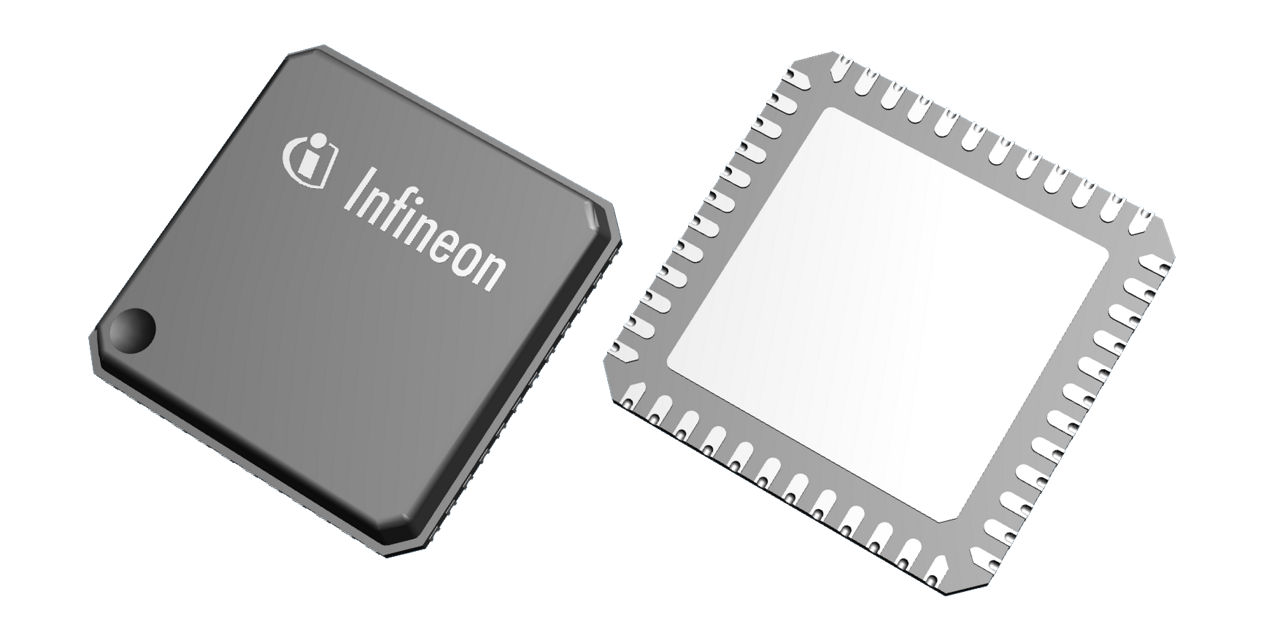

It comes in a PG-VQFN-48-79 package (48-VFQFN Exposed Pad) for surface mount.
The CAN FD transceiver supports data rates up to 5 Mbit/s.
Two LIN transceivers are integrated, compliant with LIN 2.2/ISO 17987-4/SAE J2602.
The 16-bit SPI interface is used for configuration and diagnostics.
It has four high-side outputs with typical 7Ω resistance.
