Mfr Part #:

TLE9262BQXV33XUMA1

The Infineon Technologies TLE9262BQXV33XUMA1 is a System Basis Chip featuring integrated voltage regulators, CAN FD, and LIN transceivers. It is qualified for automotive applications.

✓ Total Stock: 3,000 pcs

$ Price Range: $6.39

TLE9262BQXV33XUMA1 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Risen Electronics ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	On Request	On Request	2026-02-16 21:33:16

TLE9262BQXV33XUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Specialized
Manufacturer Name	Infineon Technologies
Applications	Automotive
Interface	SPI
Lead Spacing	0 mm
Mounting Type	Surface Mount
Supplier Device Package	PG-VQFN-48-31
Voltage	28V

View Similar Products (0)

TLE9262BQXV33XUMA1 Description

Short technical summary and product information.

The Infineon Technologies TLE9262BQXV33XUMA1 is a Mid-Range+ System Basis Chip (SBC) designed for automotive applications. It integrates two low-drop voltage regulators: a main regulator providing 3.3V up to 250mA and an auxiliary regulator offering 5V up to 100mA. Additionally, it includes a selectable 3.3V or 1.8V regulator configurable for various usage scenarios.

This SBC features a high-speed CAN transceiver supporting CAN FD communication up to 5 Mbit/s and a LIN transceiver compatible with LIN 2.2/ISO 17987-4/SAE J2602 standards. It also provides four high-side outputs, two High-Voltage GPIOs, and three High-Voltage wake inputs. Integrated fail-safe and supervision functions, including a watchdog and interrupt/reset outputs, enhance system reliability. Configuration and diagnostics are managed via a 16-bit SPI interface.

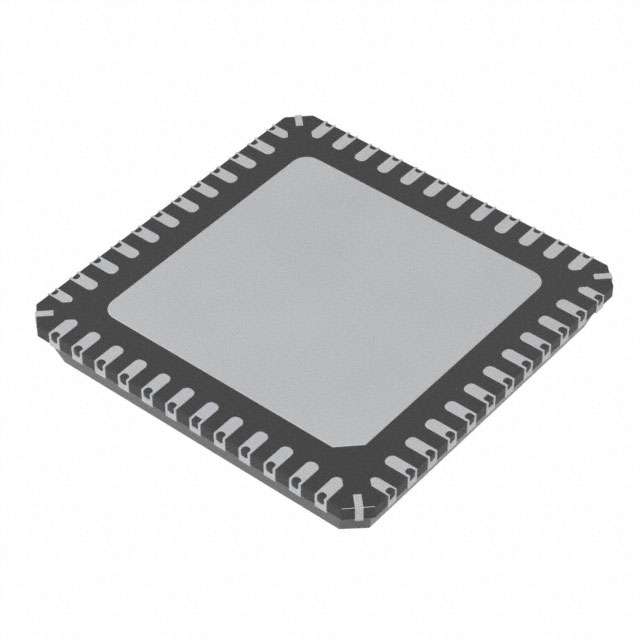

The TLE9262BQXV33XUMA1 is supplied in a 48-VFQFN exposed pad package and is surface-mounted. Its robust design and comprehensive feature set make it suitable for applications such as Body Control Modules, Gateway applications, HVAC systems, and various closure modules.

Product validation is according to AEC-Q100, confirming its suitability for demanding automotive environments.

TLE9262BQXV33XUMA1 Quick Information

Product Type: System Basis Chip

Canonical Name: Infineon Technologies TLE9262BQXV33XUMA1 System Basis Chip

Subcategory: Specialized Interface ICs

TLE9262BQXV33XUMA1 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TLE9262BQXV33XUMA1 Estimated Pricing

Qty	Low	High
1+	$6.39	$6.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE9262BQXV33XUMA1 Features

Dual integrated low-drop voltage regulators.
High-speed CAN FD and LIN transceivers.
Four high-side outputs and HV wake inputs.
Integrated fail-safe and supervision functions.
Qualified for automotive applications (AEC-Q100).

TLE9262BQXV33XUMA1 Applications

Ideal for Body Control Modules.
Suitable for Gateway applications.
Used in HVAC systems.
Applicable for closure modules.
Supports passive keyless entry.

TLE9262BQXV33XUMA1 FAQs

4 frequently asked questions generated from this part’s specifications.

What are the main voltage regulators provided by the TLE9262BQXV33XUMA1?

The TLE9262BQXV33XUMA1 features a main regulator with 3.3 V up to 250 mA and an auxiliary regulator with 5 V up to 100 mA.

What communication protocols does the TLE9262BQXV33XUMA1 support?

It supports high-speed CAN FD communication up to 5 Mbit/s and LIN 2.2/ISO 17987-4/SAE J2602.

What is the package type for the TLE9262BQXV33XUMA1?

The TLE9262BQXV33XUMA1 is supplied in a 48-VFQFN Exposed Pad package.

Is the TLE9262BQXV33XUMA1 qualified for automotive applications?

Yes, the TLE9262BQXV33XUMA1 is qualified for automotive applications according to AEC-Q100.
