TLE9252VLCXUMA1 The Infineon TLE9252VLCXUMA1 is a high-speed CAN FD transceiver designed for automotive applications. It supports data rates up to 5Mbps and features low current consumption in sleep mode.
Mfr Part #:

TLE9252VLCXUMA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon TLE9252VLCXUMA1 is a high-speed CAN FD transceiver designed for automotive applications. It supports data rates up to 5Mbps and features low current consumption in sleep mode.
✓ Total Stock: 20,000 pcs
$ Price Range: $2.13

TLE9252VLCXUMA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE9252VLCXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Duplex
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Type
Voltage
View Similar Products (0)

TLE9252VLCXUMA1 Description

Short technical summary and product information.

The Infineon TLE9252VLCXUMA1 is a high-speed CAN FD transceiver compliant with ISO 11898-2 (2016) and SAE J2284-4/-5 standards. It is designed for automotive and industrial applications, interfacing between the physical bus layer and CAN protocol controllers. This transceiver supports data frames up to 5 Mbit/s and offers excellent ESD robustness of +/-10kV (HBM).



Key features include a very low current consumption in sleep mode (max. 25µA) with wake-up capabilities, dual power supply support for robust battery cranking behavior, and fail-safe features like overtemperature shut-down. It also provides very low electromagnetic emission, allowing for chokeless operation. The device is qualified for automotive applications according to AEC-Q100.

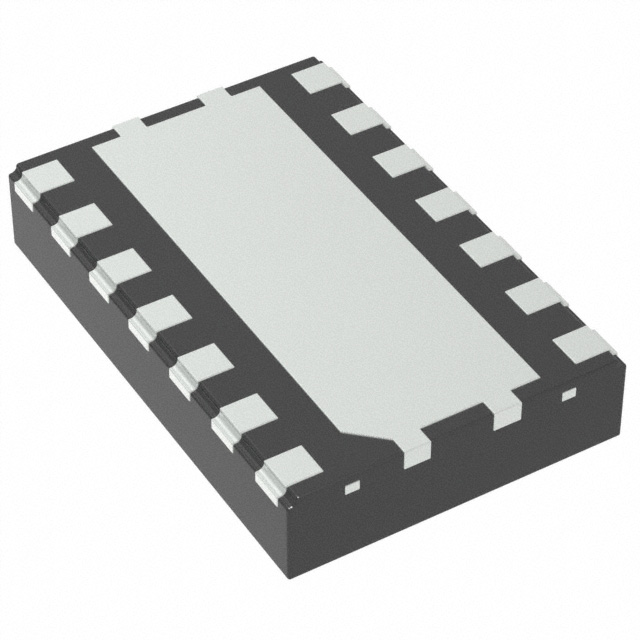

The TLE9252VLCXUMA1 is supplied in a 14-TDFN Exposed Pad package (PG-TSON-14-3) with a surface mount, wettable flank mounting type. It operates within a voltage range of 4.5V to 5.5V and has an operating temperature range of -40°C to 150°C (TJ).

TLE9252VLCXUMA1 Quick Information

Product Type: CAN Transceiver
Canonical Name: TLE9252VLCXUMA1 High-Speed CAN FD Transceiver
Subcategory: CAN Transceiver

TLE9252VLCXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE9252VLCXUMA1 Estimated Pricing

Qty Low High
1+ $2.13 $2.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE9252VLCXUMA1 Features

  • Fully compliant to ISO 11898-2 (2016).
  • Supports CAN FD data frames up to 5Mbit/s.
  • Excellent ESD robustness +/-10k V (HBM).
  • Very low sleep mode current consumption (25µA).
  • Qualified for automotive applications (AEC-Q100).

TLE9252VLCXUMA1 Applications

  • Ideal for infotainment applications.
  • Suitable for cluster modules.
  • Used in radar applications.
  • Applicable for HVAC systems.

TLE9252VLCXUMA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TLE9252VLCXUMA1?

The operating voltage range is 4.5V to 5.5V.

What package type is the TLE9252VLCXUMA1 supplied in?

It is supplied in a 14-TDFN Exposed Pad package (PG-TSON-14-3).

What is the operating temperature range for this CAN transceiver?

The operating temperature range is -40°C to 150°C (TJ).

Is the TLE9252VLCXUMA1 RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the maximum data rate supported by the TLE9252VLCXUMA1?

It supports CAN FD data frames up to 5 Mbit/s.

What are the key fail-safe features of the TLE9252VLCXUMA1?

Fail-safe features include TxD time-out, RxD Recessive Clamping, and Overtemperature shut-down.

What is the current consumption in sleep mode?

The current consumption in sleep mode is a maximum of 25µA.
