| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
1,012 pcs
|
1012 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Drivers | |
| Operating Temperature | |
| Protocol | |
| Supplier Device Package | |
| Supplier Package | |
| Type | |
| Voltage |
The Infineon TLE9251VSJXUMA1 is a high-speed CAN transceiver that serves as the interface between the physical bus layer and HS CAN protocol controllers. It is designed to meet the requirements of ISO 11898-2 (2016) and SAE J2284 standards, making it suitable for automotive and industrial applications.
Key features include compliance with ISO 11898-2 and SAE J2284-4/-5, guaranteed loop delay symmetry for CAN FD data frames up to 5 MBit/s, and very low electromagnetic emission (EME). The device offers a VIO input for voltage adaptation to 3.3V and 5V microcontrollers, a bus wake-up pattern function, and a stand-by mode with minimized quiescent current. It also provides wake-up indication on the RxD output and a wide common mode range for electromagnetic immunity (EMI).
With excellent ESD robustness of +/-8kV (HBM) and +/-11kV (IEC 61000-4-2), the TLE9251VSJXUMA1 is protected against automotive transients according to ISO 7637 and SAE J2962-2 standards. It is qualified for automotive applications according to AEC-Q100.

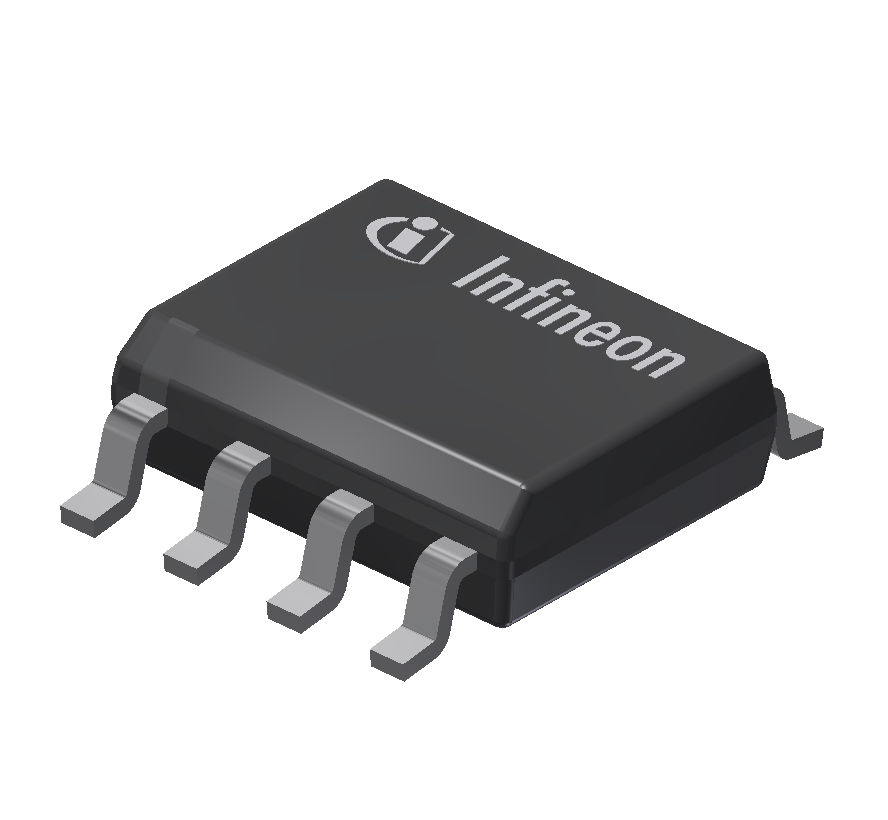

The transceiver is available in an 8-SOIC package (PG-DSO-8) with surface mount technology. This package is RoHS compliant and halogen-free, designed for automated optical inspection (AOI).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.82 | $1.82 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is between 4.5V and 5.5V.
The TLE9251VSJXUMA1 is available in an 8-SOIC package with surface mount technology.
The operating temperature range is -40°C to 150°C (TJ).
Yes, the TLE9251VSJXUMA1 is RoHS3 Compliant.
It is fully compliant to ISO 11898-2 (2016) and SAE J2284-4/-5, and protected against automotive transients according to ISO 7637 and SAE J2962-2 standards.
The device guarantees loop delay symmetry for CAN FD data frames up to 5 MBit/s.
It has excellent ESD robustness of +/-8kV (HBM) and +/-11kV (IEC 61000-4-2).
