TLE9250XLEXUMA1 The Infineon Technologies TLE9250XLEXUMA1 is a high-speed CAN transceiver designed for automotive and industrial applications. It supports data rates up to 5Mbps.
Mfr Part #:

TLE9250XLEXUMA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE9250XLEXUMA1 is a high-speed CAN transceiver designed for automotive and industrial applications. It supports data rates up to 5Mbps.
✓ Total Stock: 20,000 pcs
$ Price Range: $1.47

TLE9250XLEXUMA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
20,000 pcs
On Request
20000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE9250XLEXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Halogen Free
Mounting Type
Number of Drivers
Operating Temperature
Protocol
Receiver Hysteresis
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

TLE9250XLEXUMA1 Description

Short technical summary and product information.

The Infineon Technologies TLE9250XLEXUMA1 is a high-speed CAN transceiver compliant with ISO 11898-2 (2016) and SAE J2284 standards. It is designed for HS CAN networks in automotive and industrial environments, providing an interface between the physical bus layer and the CAN protocol controller.



Key features include a data rate of up to 5Mbps, a wide operating voltage range of 4.5V to 5.5V, and excellent ESD robustness of +/-8kV (HBM) and +/-11kV (IEC 61000-4-2). The transceiver offers very low electromagnetic emission (EME) and a wide common mode range for electromagnetic immunity (EMI), often eliminating the need for additional common mode chokes or protection devices.

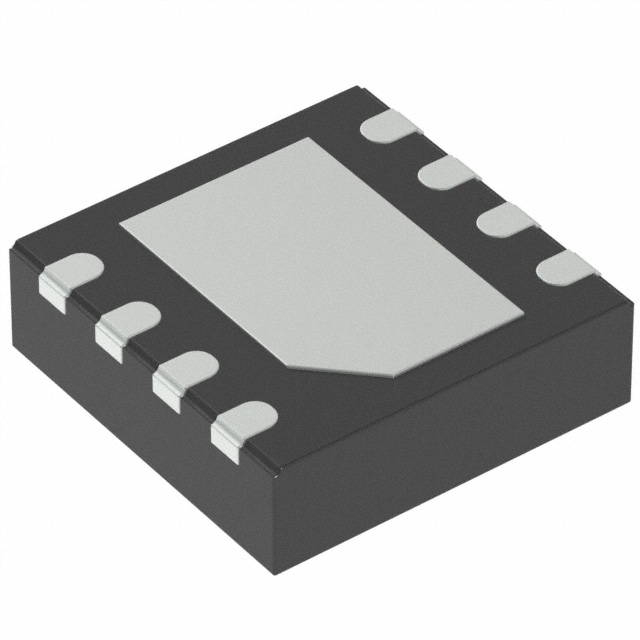

It is available in a compact PG-TSON-8 package, suitable for automated optical inspection (AOI). The device includes protection against automotive transients according to ISO 7637 and SAE J2962-2 standards, overtemperature protection, and a TxD time-out function. The TLE9250XLEXUMA1 also features a very low CAN bus leakage current in power-down state and a receive-only mode.

TLE9250XLEXUMA1 Quick Information

Product Type: CAN Transceiver
Series: TLE9250X
Canonical Name: TLE9250XLEXUMA1 High Speed CAN Transceiver
Subcategory: CAN Transceiver

TLE9250XLEXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE9250XLEXUMA1 Estimated Pricing

Qty Low High
1+ $1.47 $1.47

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE9250XLEXUMA1 Features

  • Fully compliant to ISO 11898-2 and SAE J2284.
  • Supports CAN FD data frames up to 5 MBit/s.
  • Very low electromagnetic emission (EME).
  • Excellent ESD robustness +/-8kV (HBM).
  • Small, leadless TSON8 package for AOI.

TLE9250XLEXUMA1 Applications

  • Used in HS CAN networks for automotive.
  • Suitable for industrial applications.
  • Interface for CAN protocol controllers.
  • Protects microcontrollers from network interferences.

TLE9250XLEXUMA1 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TLE9250XLEXUMA1?

The operating voltage is 4.5V to 5.5V.

What package type is the TLE9250XLEXUMA1 available in?

It is available in a 8-TDFN Exposed Pad package, specifically the PG-TSON-8-1 supplier package.

What is the operating temperature range for this CAN transceiver?

The operating temperature range is -40°C to 150°C (TJ).

Is the TLE9250XLEXUMA1 RoHS compliant?

Yes, it is RoHS3 Compliant.

What communication protocols does the TLE9250XLEXUMA1 support?

It supports CANbus and is fully compliant with ISO 11898-2 (2016) and SAE J2284-4/-5.

What is the maximum data rate for the TLE9250XLEXUMA1?

The maximum data rate is 5Mbps, with guaranteed loop delay symmetry for CAN FD data frames up to this speed.
