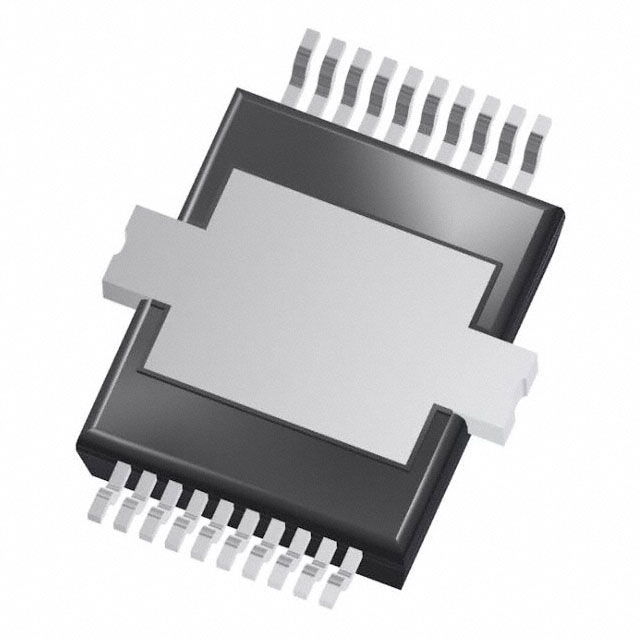

The TLE9104SHXUMA1 from Infineon Technologies is a Smart Quad Channel Powertrain Switch designed for demanding automotive applications. This device utilizes Smart Power Technology (SPT) with four open-drain DMOS output stages, offering robust protection features.
Key electrical specifications include a signal supply voltage range of 3.0 to 5.5 V and an analog supply voltage of 4.5 to 5.5 V. The switch provides a nominal continuous load current of 3A per channel and features configurable overcurrent protection with a short circuit to battery detection threshold of 5A. The on-state resistance is typically 150 mΩ at 25°C and 300 mΩ at 150°C. Output clamping voltage is rated between 50 and 60 V.
Designed for automotive powertrain applications, the TLE9104SHXUMA1 can function as a driver IC for inductive and ohmic actuators such as injectors, solenoids, and relays. It supports 16-bit SPI for diagnostic and control functions, as well as direct parallel inputs for PWM applications. The device is qualified for automotive applications according to AEC-Q100/101 standards.
Packaged in a PG-DSO-20-88 (20-BFSOP) with an exposed pad, this component is designed for surface mounting. It is also noted as a green product, being completely lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.13 | $5.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The signal supply voltage range is 3.0 to 5.5 V, and the analog supply voltage range is 4.5 to 5.5 V.
The typical on-state resistance is 150 mΩ at 25°C and 300 mΩ at 150°C.
The nominal continuous load current per channel is 3 A.
The short circuit to battery detection threshold is 5 A per channel.
It is available in a PG-DSO-20-88 surface mount package.
The output clamping voltage range is 50 to 60 V.
