The Infineon TLE9104SH is a Smart Quad Channel Powertrain Switch featuring four open drain DMOS output stages. It is designed for automotive powertrain applications and can be used as a driver IC for inductive and ohmic actuators such as injectors, solenoids, and relays.
Key electrical specifications include a signal supply voltage range of 3.0 to 5.5 V and an analog supply voltage range of 4.5 to 5.5 V. The device offers a typical on-state resistance of 150 mΩ at 25°C and 300 mΩ at 150°C. It supports a nominal continuous load current of 3A per channel and includes short circuit to battery detection with a threshold of 5A.
Integrated protection functions include configurable overcurrent protection, overtemperature protection, open load detection, and short circuit to GND detection. The output stages can be controlled directly by parallel inputs for PWM applications or via a 16-bit SPI interface for diagnostic and control purposes.

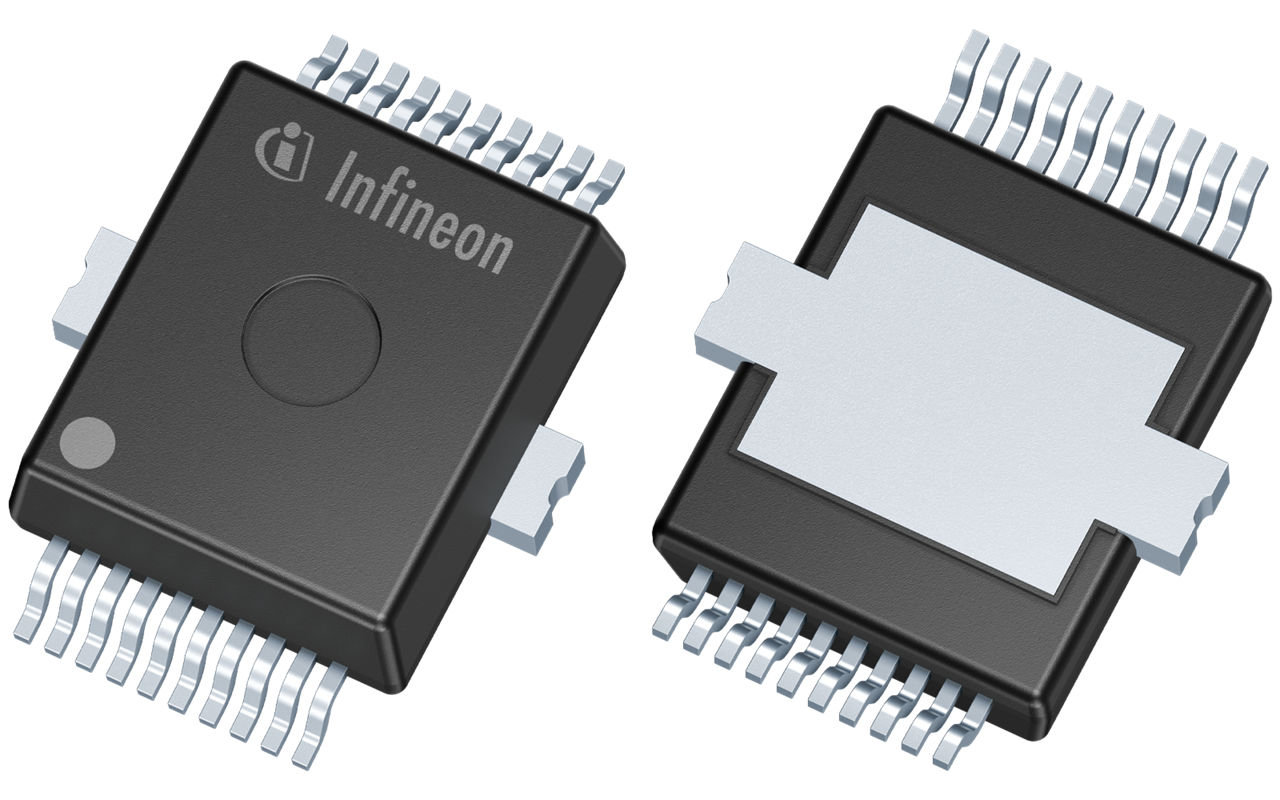

The TLE9104SH is supplied in a PG-DSO-20-88 package and is qualified for automotive applications according to AEC-Q100/101. It is also a green product, completely lead-free.
The signal supply voltage range is 3.0 to 5.5 V.
The typical on-state resistance at 25°C is 150 mΩ.
The nominal continuous load current is 3A.
The TLE9104SH is supplied in a PG-DSO-20-88 package.
