| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,000 pcs
|
11000 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| ESD Protection | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package |

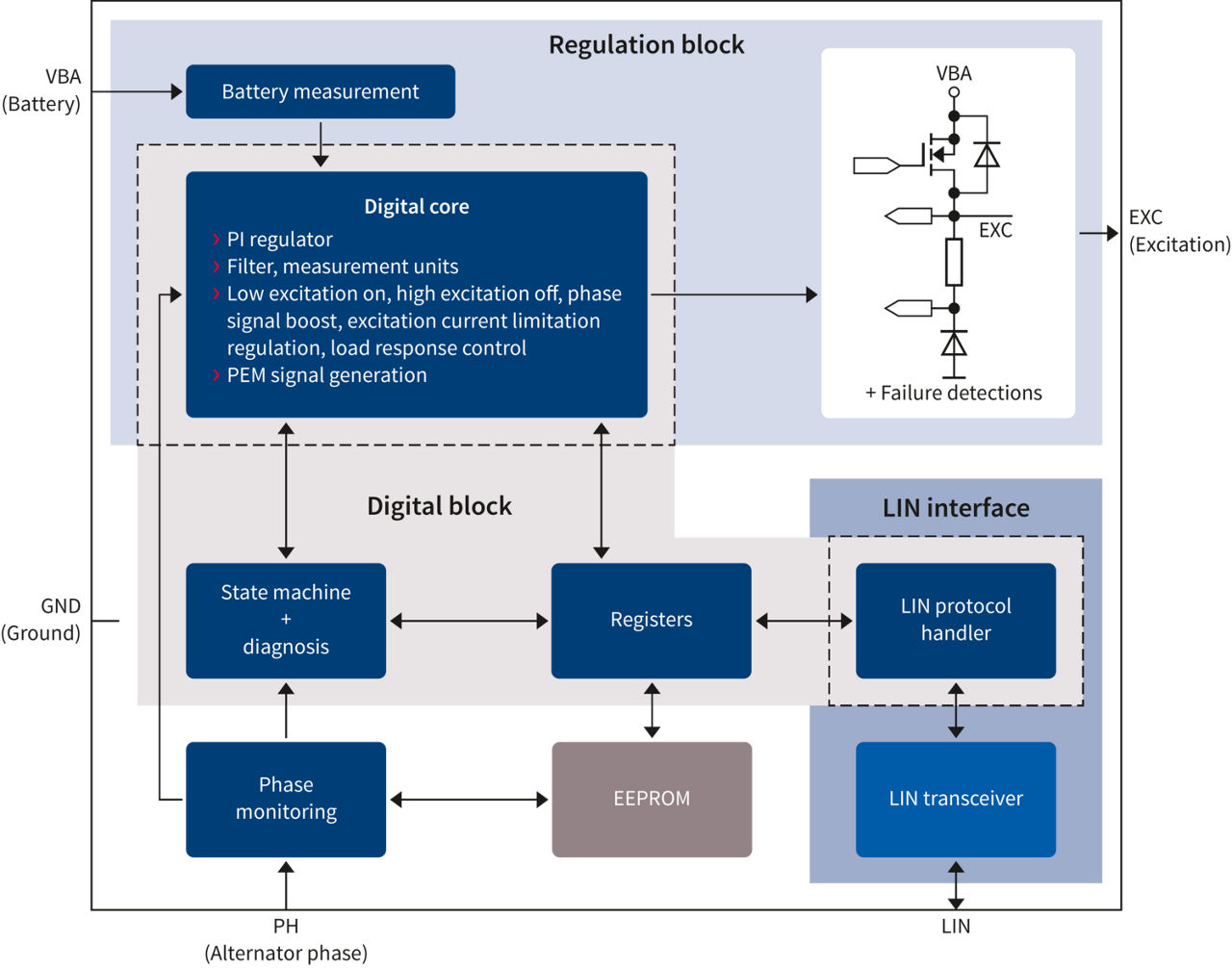

The Infineon Technologies TLE8880TN is a monolithic, full-featured alternator regulator IC designed for closed-loop voltage control in 12V automotive multi-phase alternators. It supports LIN 1.3, LIN 2.1, and LIN 2.2 communication protocols, enabling interaction with engine or energy management ECUs. The device regulates battery voltage precisely between 10.6V and 16V.
Key features include a high-side DMOS output driver capable of up to 12A excitation current, 8kV ESD protection on all alternator lines, and an adjustable EEPROM for customization. The operating temperature range is -40°C to 175°C, making it suitable for harsh automotive environments. The TLE8880TN offers flexibility with configurable LIN IDs and filters, and enhanced regulation behavior.
This IC is qualified according to AEC-Q100 and is compliant with various LIN alternator regulator specifications, having been released by leading OEMs. It is available in a TO-220-5 package with through-hole mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 10.6 V to 16 V.
-40°C to 175°C.
Through-hole TO-220-5.
12 A.
60 µA.
Yes, 8 kV ESD protection.
60 mΩ.
