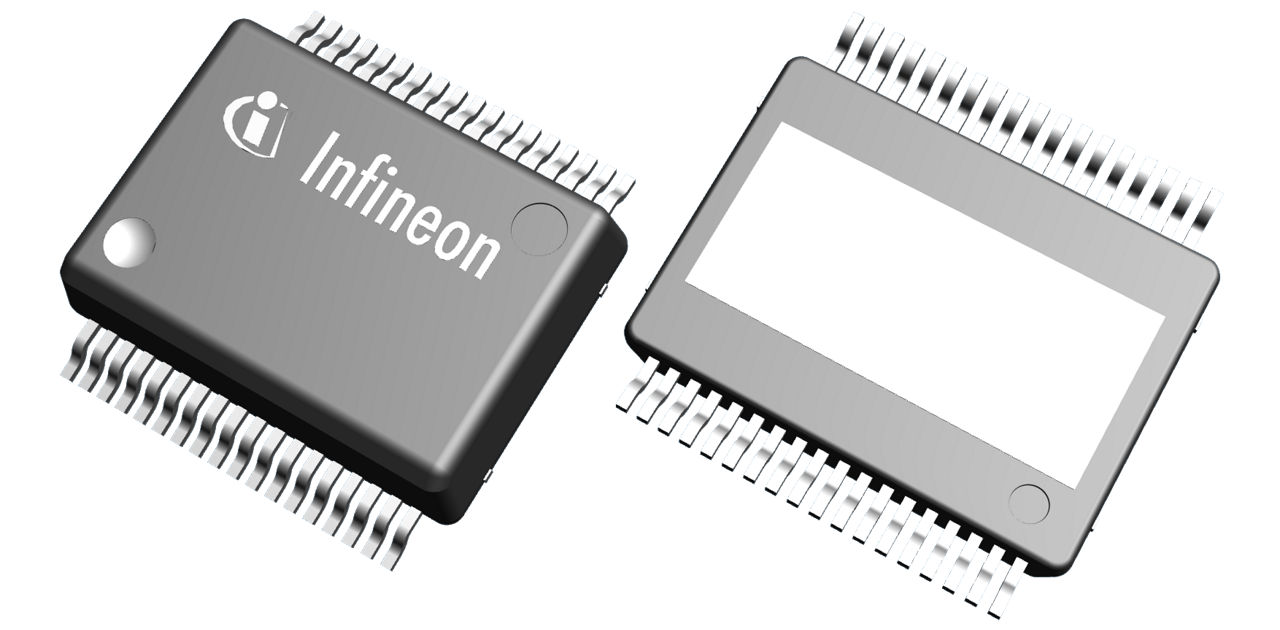

The Infineon TLE8110ED is a 10-channel low-side switch utilizing Smart Power Technology (SPT). It features open-drain DMOS output stages and is protected by embedded functions for overvoltage, overtemperature, and ESD.
This device supports both Serial Peripheral Interface (SPI) and direct parallel PWM control, making it compatible with 3.3V and 5V microcontroller I/O ports. The TLE8110ED is suitable for switching solenoids, relays, and resistive loads in automotive and industrial systems, particularly in engine management and powertrain applications.
Key electrical specifications include a supply voltage range of 4.50 to 5.50 V (VDD) and 3.00 to 5.50 V (VCC). On-resistance varies by channel group and temperature, with values as low as 0.25 Ω at 25°C for channels 5-6. Nominal output currents range from 0.75 A to 1.70 A depending on the channel group.
The TLE8110ED is supplied in a PG-DSO-36-72 package and is qualified for automotive applications according to AEC-Q100/101 standards. It is also a green product.
The TLE8110ED has an analogue supply voltage (VDD) range of 4.50 to 5.50 V and a digital supply voltage (VCC) range of 3.00 to 5.50 V.
At Tj = 25°C and IDnom, the on-resistance is 0.30 Ω for channels 1-4, 0.25 Ω for channels 5-6, and 0.60 Ω for channels 7-10. At Tj = 150°C, these values increase to 0.60 Ω, 0.50 Ω, and 1.20 Ω, respectively.
The nominal output current is 1.50 A for channels 1-4, 1.70 A for channels 5-6, and 0.75 A for channels 7-10.
The TLE8110ED is supplied in a PG-DSO-36-72 package.
The TLE8110ED includes overvoltage, overtemperature, and ESD protection.
Yes, the TLE8110ED is qualified for automotive applications according to AEC-Q100/101.
