| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,043 pcs
|
1043 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Fault Protection | |
| Interface | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Ratio | |
| Rds On (Typ) | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Switch Type | |
| Voltage |
The Infineon Technologies TLE8108EMXUMA1 is an 8-channel low-side switch designed for relay and solenoid driving applications. This smart driver features an SPI interface for control and configuration, enabling efficient communication within automotive systems.
Key electrical characteristics include an operating voltage range of 4.5V to 5.5V and a per-channel output current capability of 400mA. The device utilizes N-Channel outputs and offers a typical on-resistance of 800mOhm. Protection features such as open load detection and over-temperature protection are integrated to enhance reliability.

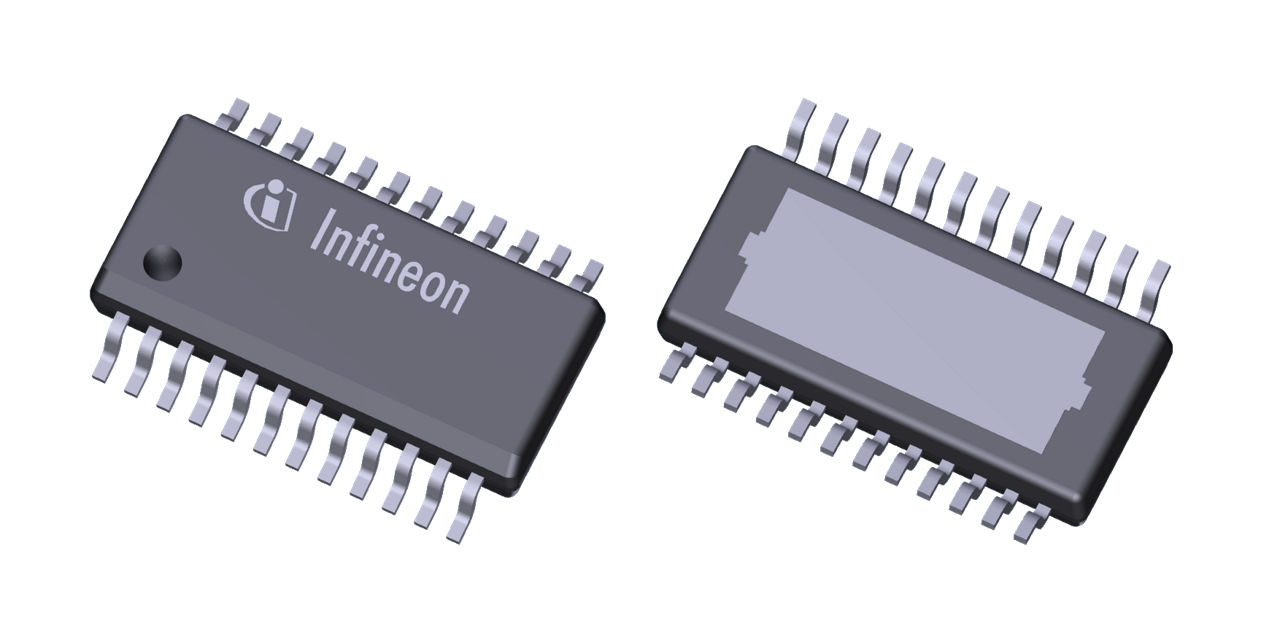

Packaged in a 24-LSSOP (0.154", 3.90mm Width) with an exposed pad, the TLE8108EMXUMA1 is designed for surface mounting. Its operating temperature range is -40°C to 150°C (TJ), making it suitable for demanding automotive environments. The device supports a 1:2 ratio for its outputs and is classified as a Relay, Solenoid Driver.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.87 | $3.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 4.5V to 5.5V.
It has 8 outputs.
Each channel can provide up to 400mA.
It uses an SPI interface.
It includes open load detection and over-temperature protection.
It is a 24-LSSOP (0.154", 3.90mm Width) with an exposed pad, designed for surface mounting.
The operating temperature range is -40°C to 150°C (TJ).
