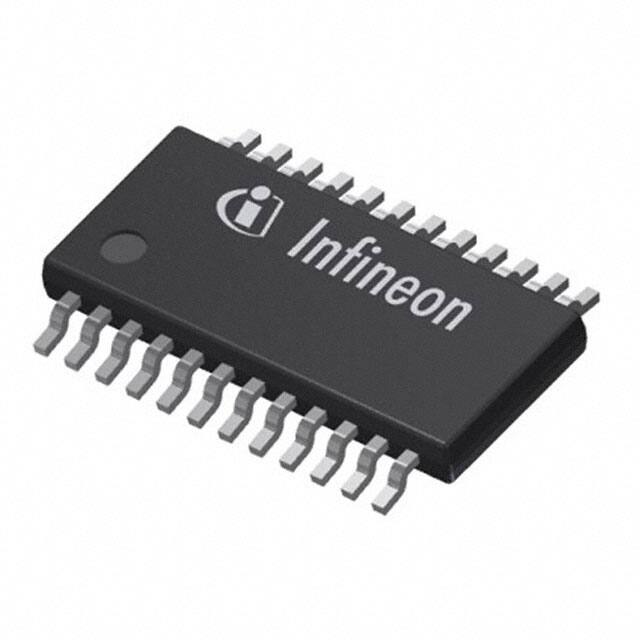

TLE75008ESDXUMA1 The Infineon Technologies TLE75008ESDXUMA1 is an 8-channel low-side power distribution switch designed for automotive and industrial applications. It features an SPI interface and N-channel outputs.
Mfr Part #:

TLE75008ESDXUMA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies TLE75008ESDXUMA1 is an 8-channel low-side power distribution switch designed for automotive and industrial applications. It features an SPI interface and N-channel outputs.
✓ Total Stock: 15,000 pcs
$ Price Range: $1.51

TLE75008ESDXUMA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
15,000 pcs
On Request
15000 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TLE75008ESDXUMA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Fault Protection
Features
Interface
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Ratio
Rds On (Typ)
Supplier Device Package
Switch Type
Voltage
View Similar Products (0)

TLE75008ESDXUMA1 Description

Short technical summary and product information.

The Infineon Technologies TLE75008ESDXUMA1 is an eight-channel low-side power switch designed for 12V automotive and industrial applications. It is particularly suited for driving relays, LEDs, and motors.



This device utilizes a 16-bit serial peripheral interface (SPI) for control and diagnosis, offering daisy chain capability and compatibility with 8-bit SPI devices. It includes two CMOS-compatible parallel input pins with input mapping functionality. The switch operates with a digital supply voltage compatible with 3.3V and 5V microcontrollers and supports cranking capability down to VS = 3.0V.



Key features include a typical Rds(On) of 1 Ohm, a current rating of 330mA per channel, and comprehensive protection features such as reverse battery protection, short circuit protection, over-temperature shutdown, and overvoltage protection. The package is a 24-TSSOP (PG-TSDSO-24-51) with an exposed pad, suitable for surface mounting.



Applications for the TLE75008ESDXUMA1 include general power distribution, lighting control, heating elements, and motor driving within automotive and industrial systems.

TLE75008ESDXUMA1 Quick Information

Product Type: Power Distribution Switch
Series: TLE75008-ESD
Canonical Name: TLE75008-ESD Eight Channel Low-Side Power Switch
Subcategory: Load Driver

TLE75008ESDXUMA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TLE75008ESDXUMA1 Estimated Pricing

Qty Low High
1+ $1.51 $1.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TLE75008ESDXUMA1 Features

  • Eight channel low-side power switch.
  • SPI interface for control and diagnosis.
  • 330mA current capability per channel.
  • Integrated protection features included.
  • PG-TSDSO-24-51 surface mount package.

TLE75008ESDXUMA1 Applications

  • Ideal for automotive lighting control.
  • Suitable for industrial motor driving.
  • Used for relay and LED control.
  • Power distribution in 12V systems.

TLE75008ESDXUMA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TLE75008ESDXUMA1?

3V to 5.5V.

What is the package type for the TLE75008ESDXUMA1?

24-TSSOP with exposed pad (PG-TSDSO-24-51).

What is the operating temperature range?

-40°C to 150°C junction temperature.

What interface does the TLE75008ESDXUMA1 use for control?

SPI interface.

What is the output configuration?

Low-side, N-channel.

What fault protection features are integrated?

Current limiting (fixed), open load detect, over temperature, over voltage.

How many outputs does this driver have?

8 outputs.
